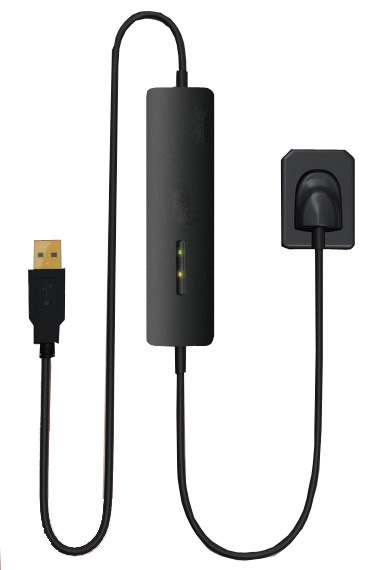

Digital Dental x-ray sensor

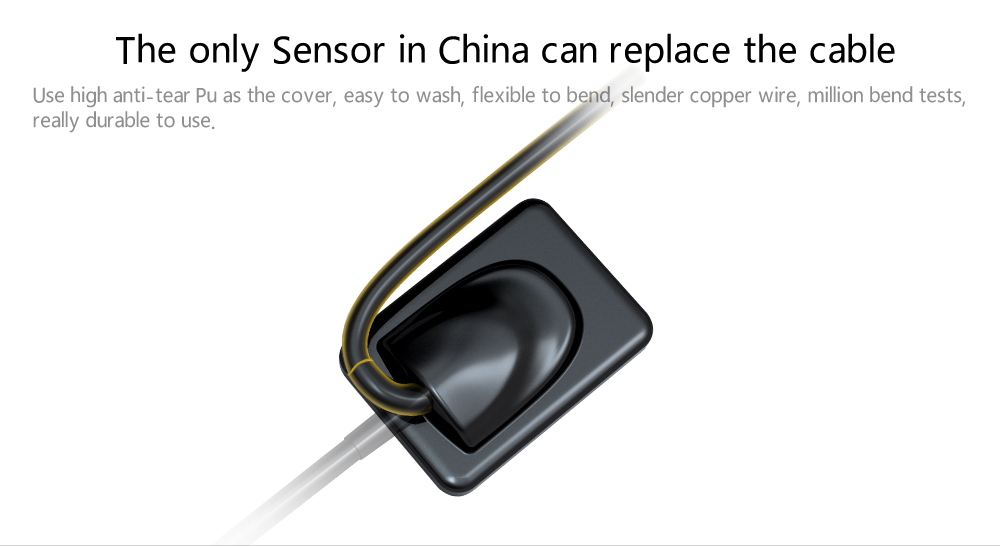

Intraoral sensor it is designed to fit comfortably into a patient’s mouth and it is to provide images shown to be every bit as diagnostic as film radiographs.
- model: DDS-SM310/DDS-SM311
- Previous:No more
- Next:No more
Intraoral sensor it is designed to fit comfortably into a patient’s mouth and it is to provide images shown to be every bit as diagnostic as film radiographs.
Specification | ||
Item | DDS-SM310 | DDS-SM311 |

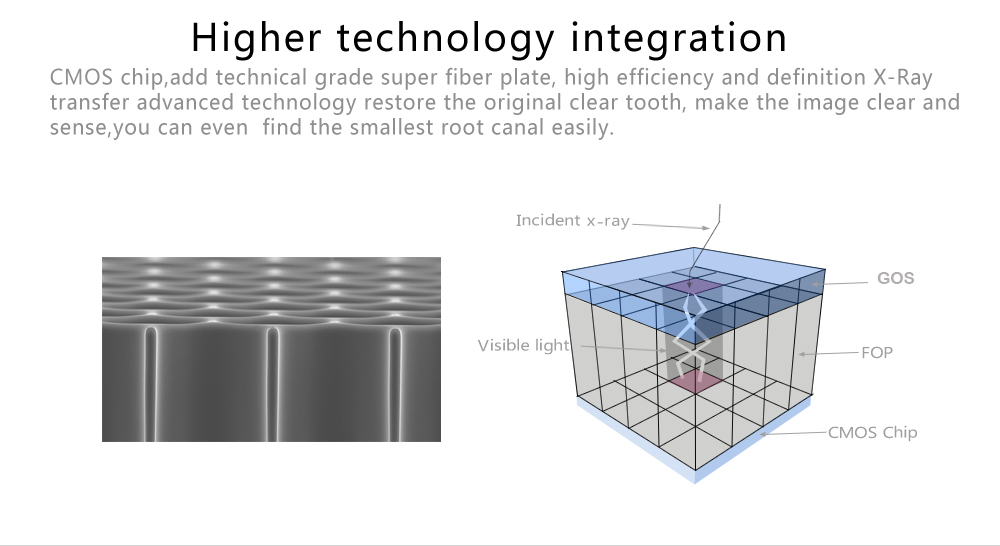

Chip Type | CMOS APS | |
Fiber Optical Plate | Yes | |
Scintillator | GOS | |
Dimension | 27.5 x 38.5mm | 32.3 x 44.3mm |
Active Area | 22.5 x 30mm | 27 x 36mm |
675 mm² | 972 mm² | |
Pixel size | 18.5μm | |
Image Pixel | 1.9M(1600*1200) | 2.7M(1920*1440) |

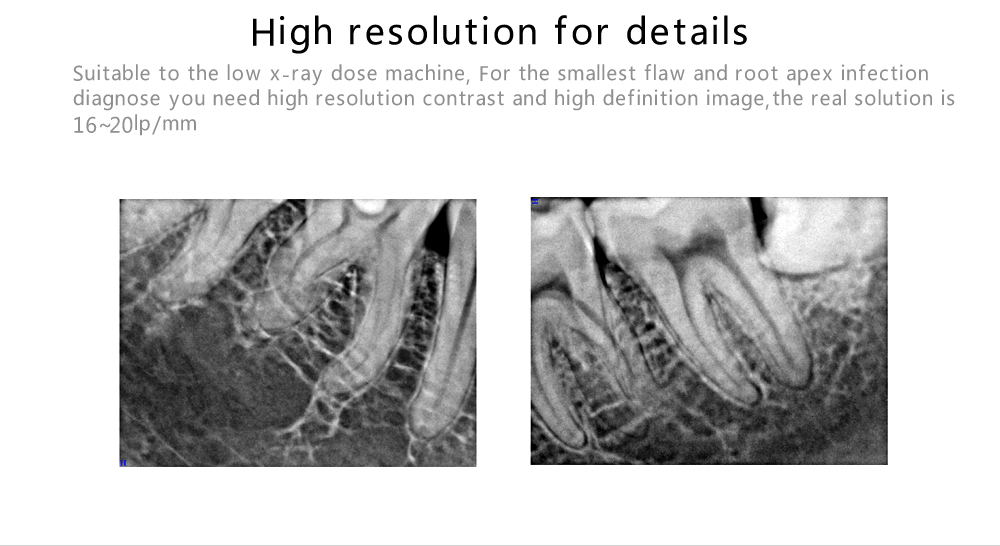

Resolution (lp/mm) |
Theoretical:27 lp/mm Measured>12-14 lp/mm |
|
Operation system |
WindowsXP/Win7 Win10(32bit&64bit) |
|

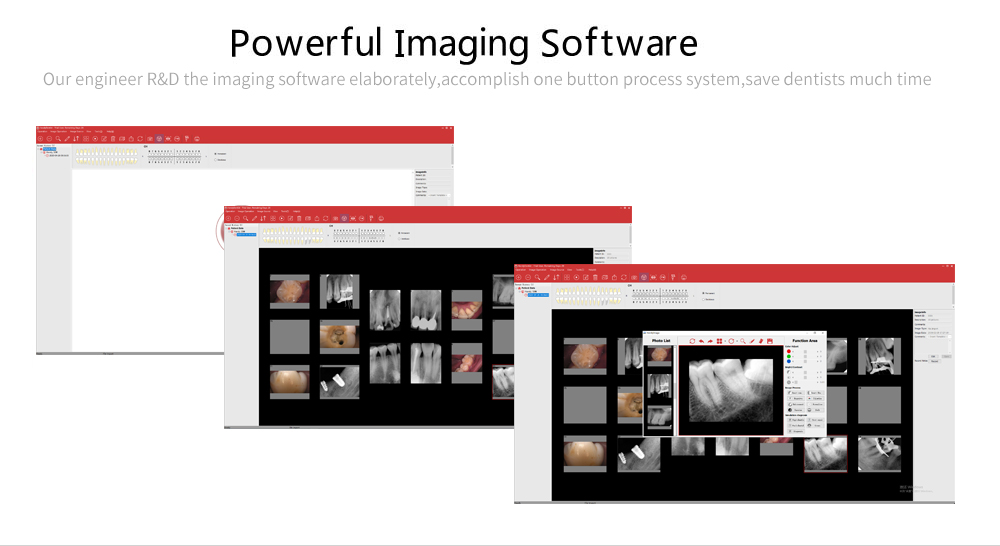

Additional | TWAIN Driver | |
