Intraoral Camera
Intraoral camera is for early detection and accurate representation of dental conditions, an intraoral camera is essential to delivering optimum quality of care.
- model： IC-SM1111
- Previous：No more
- Next：Intraoral Camera

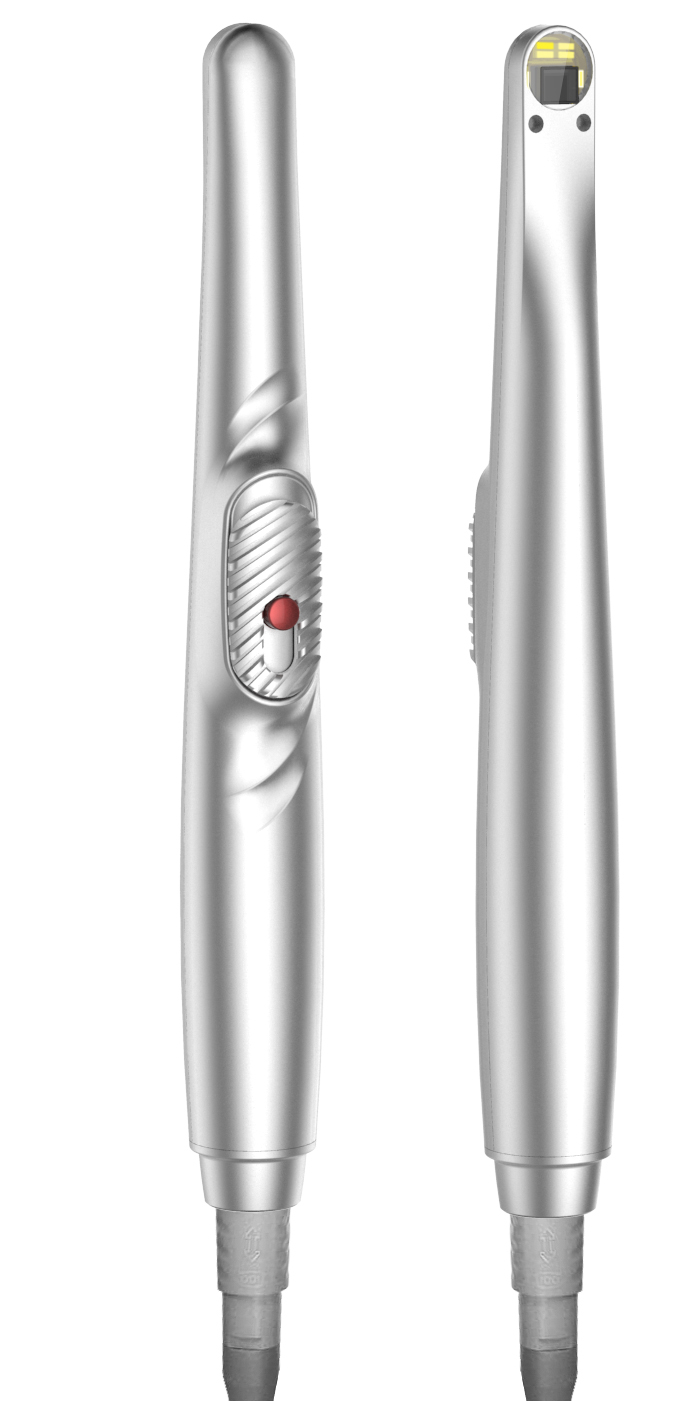

3D adjustable focus slider, better suit finger working habits
Touch iTouch Button
easy use adjustable focus slider
Fashionable & Durable Aluminum-alloy carved into shape

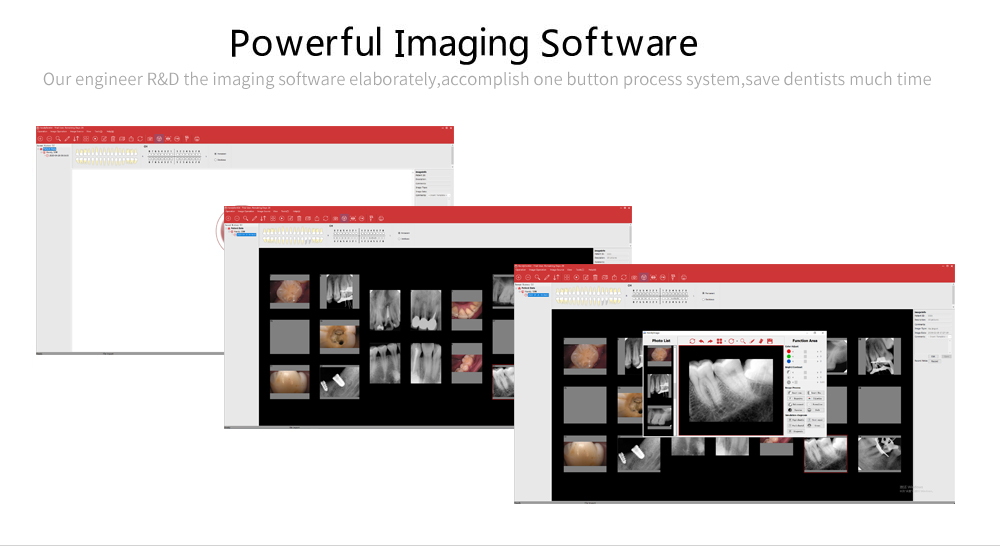

Advanced & multifunction image processing software: Handydentist

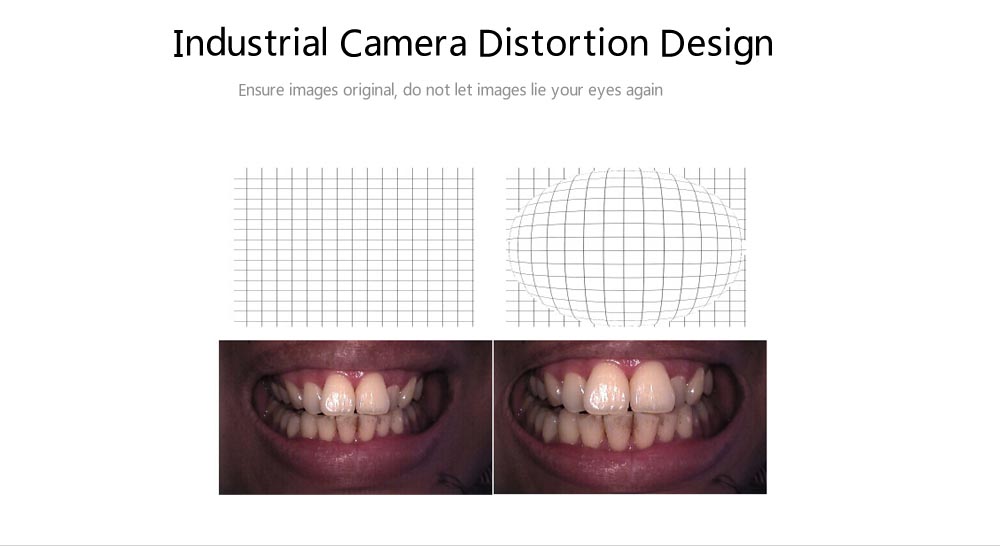

Minimum distortion design, to restore more real original intraoral shape.
DSLR in Intraoral Camera

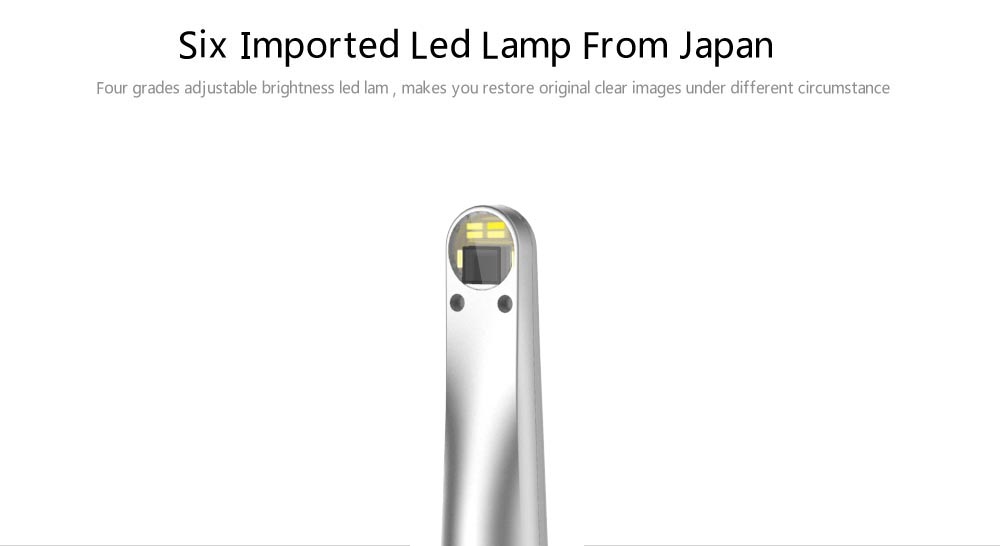

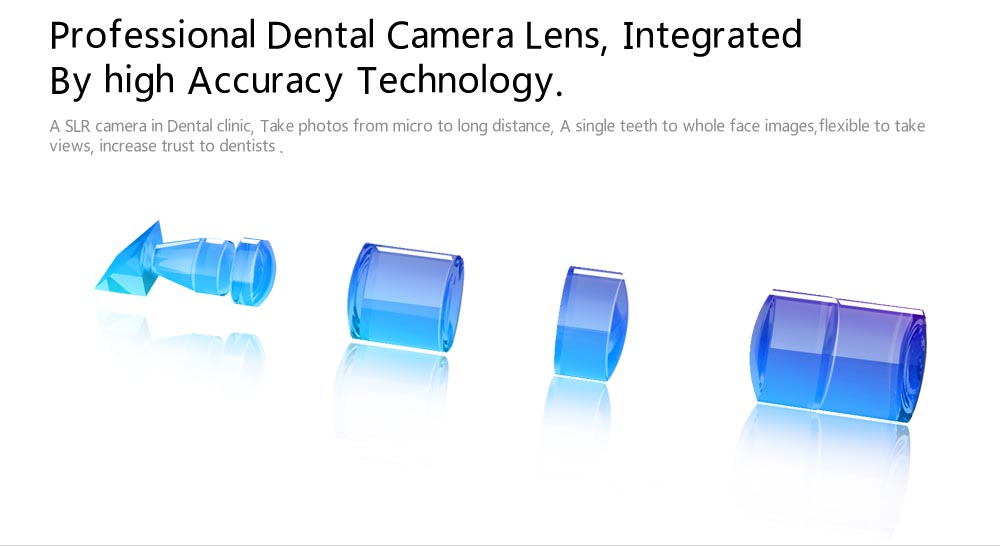

● IC-SM1111 consist of special-made adjustable focus lens, high efficiency CMOS sensor and LED lights from Japan which makes it perfectly to detect patient's single tooth (Root Canal),double teeth, full mouth and face portrait.
● Zero distance photography makes it easier to obtain fantastic images of posterior teeth for the patient swith restriction problem of mouth opening.
● Imaging efficacy close to those from dental operating microscope ,which could observe the result of root canal cleaning and the root canal orifice after odontotrypy.
| Specification | IC-SM1111 |

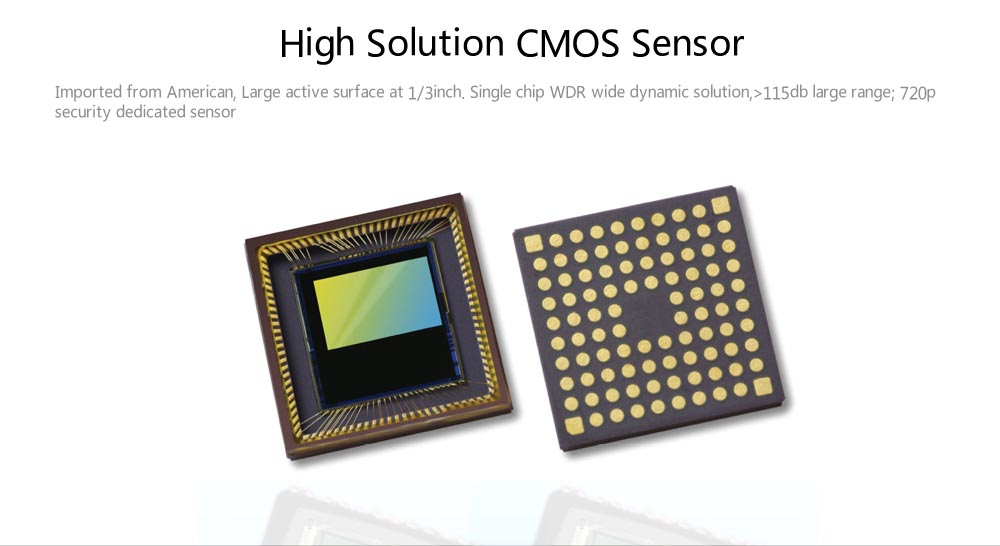

| Image Sensor | 1/3" HD CMOS |
| Resolution | 1920 x 1080 (2MP) |

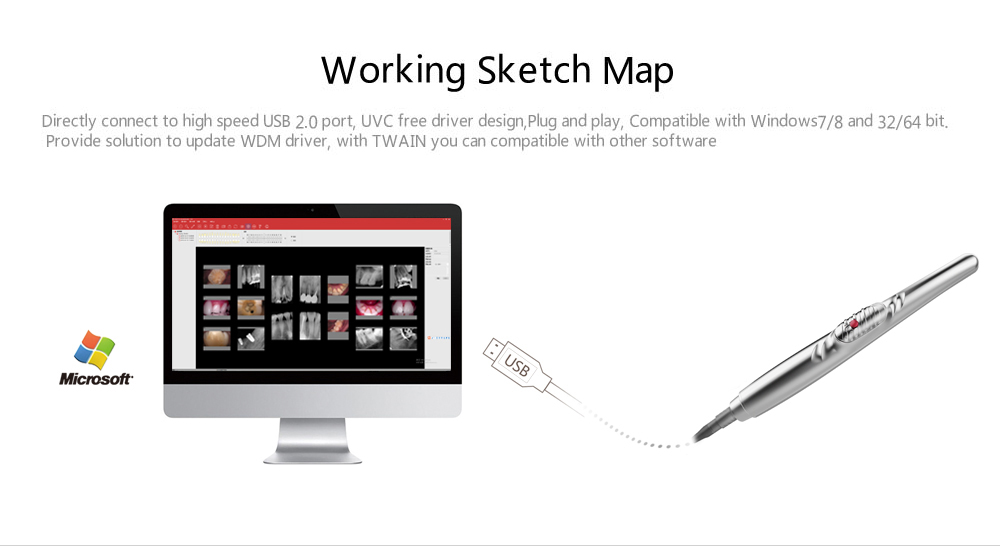

| Signal Output | USB 2.0 |
| Focus Range | 5mm ~ infinity |
| Angle of view | ≥5% |
| Distortion | ＜5% |
| Lighting | 6 LEDs |
| Length of Cable | 2m |
| Driver Type | UVC |
| TWAIN | Yes |
| Operation System | win7/ win10 (32bit&64bit) |
