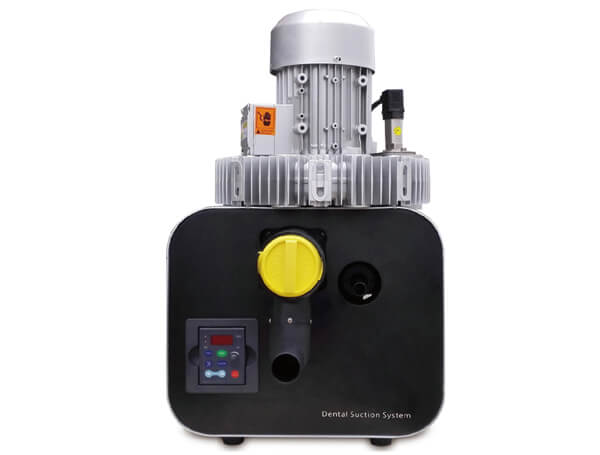

Dental Suction unit

Dental suction system is so strong that the dental assistant simply holds it close to where the dentist is working and it will suck away any nearby debris, much like a strong vacuum cleaner can suck away crumbs without actually touching them.

  • model: DSS-SM510~DSS-SM513
Environment guardians of dental treatment
1.       Applying of variable frequency technology, domestic initiative technology
2.       Two stop separation system, separate air and waste water thoroughly
3.       Quickly reach top power, ensuring multiple units work at the same time
4.       Stable average suction power on every unit
5.       Work safe and continuously

Essential equipment for high quality dental treatment
Fluctuation pressure sensor:
 The suction machine can adjust the power of motor by real-time monitoring the pipeline vacuum degree, thus to guarantee the suction on every being used

Variable frequency control panel:
Real-time monitoring the work situation of the suction machine

Filter component:
Advanced designed filter component can effectively and practically prevent the inhalation of secretion and blood foam getting in.


Model DSS-SM510 DSS-SM511 DSS-SM512 DSS-SM513
Available units Set 1 2~3 3~5 5~8
Voltage V 220~240 220~240 220~240 220~240
Power frequency Hz 50/60 50/60 50/60 50/60
Frequency convert function   - - Yes Yes
Unit Power W 400/500 700/800 1300/1500 1500/1700
Electric current A 3.0/3.5 4.1/4.8 6.6/6.9 7.6/8.2
Suction airflow L/min ≥800 ≥1000 ≥1100 ≥1500
Vacuum mbar -110 -130 -180 -180
Noise dB(A) ≤56 ≤56 ≤58 ≤60
Weight Kg 18 25 36 38
Size cm 31*45*59 31*45*59 39*49*62 41*55*62
