Self Sealing Sterilization Pouch

Sterilization pouch / Roll / Reel: pouches, rolls, reel provide for an easy and fast packing process for individual instrument, smaller sets and other items while still offering reliable sterile barrier properties.

  • model：
Description


Material:
 60gsm/70gsm Medical Grade Paper/France Arjo Paper+Blue/White/Green Medical CPP/PET Compound Film+Medical Adhesive Tape.

Manufacture Standard: ISO11607-1 EN868-5 BJ-C-07/A




Features
1.  The medical adhesive tape can make rapid and efficient seal without any professional sealing devices;
2.  The indicator’s color has significant change and no change back;
3.  The initial blue will turn into black based on steam sterilization method, and it will turn brown from initial pink based on          ETO sterilization method;
4.  The three sided explosion-proof can efficiently prevent the pouch from bursting;
5.   The transparent compound film can show what inside the pouch clearly in order to avoid errors.

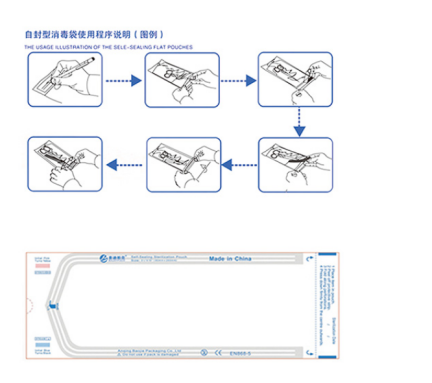

How to use
1. Apply to hospital, clinic and laboratory’s sterilization; and also apply to the disinfection of beauty products or family high-temperature;
2.  Apply to both ETO sterilization and STEAM sterilization;
3.  The sharp part of equipment should be putted contrary to the peel side to ensure safety use;
4.  Tear off the release paper aside the tangent line, seal the pouch and mark the sterilization time, contents and usage etc.
5.  The clear area with temperature below 25℃ and humidity 60% is recommended, the valid period will be 6 months after sterilizing.



Specification
ITEM SIZE（W*L） PACKING SIZE OF BOX SIZE OF CTN G.W N.W
NO. INCH mm*mm PCS/BOX BOX/CTN L*W*H(mm) L*W*H(mm) KG/CTN KG/CTN
ZFD.057-90 2.25’’X3.5’’ 57X90 200 60 95X59X55 370X210X290 8.8 8.3
ZFD.057-100 2.25’’X4’’ 57X100 200 60 105X59X55 370X230X290 10 9.5
ZFD.057-130 2.25’’X5’’ 57X130 200 60 135X59X55 370X290X290 12 11.5
ZFD.070-260 2.75’’X10’’ 70X260 200 20 265X72X55 310X280X290 10 9.5
ZFD.090-135 3.5’’X5.25’’ 90X135 200 20 140X92X55 390X15X290 8 7.5
ZFD.090-165 3.5’’X6.5’’ 90X165 200 20 170X92X55 390X180X290 9 8.5
ZFD.090-170 3.5’’X6.5’’ 90X170 200 20 175X92X55 390X190X290 9 8.5
ZFD.090-260 3.5’’X10’’ 90X260 200 20 265X92X55 390X280X290 13 12.5
ZFD.110-280 4.3’’X11’’ 110X280 200 10 285X112X55 300X300X290 9.5 9
ZFD.135-260 5.3’’X10’’ 135X260 200 10 265X137X55 290X280X290 9.5 9
ZFD.135-280 5.3’’X11’’ 135X280 200 10 285X137X55 310X290X290 10.5 10
ZFD.140-280 5.5’’X11’’ 140X280 200 10 285X142X55 310X290X310 11 10.5
ZFD.190-360 7.5’’X14.1’’ 190X360 200 5 365X192X55 380X330X210 13.5 13
ZFD.250-370 9.8’’X14.5’’ 250X370 200 5 375X252X55 395X295X270 13.5 13
