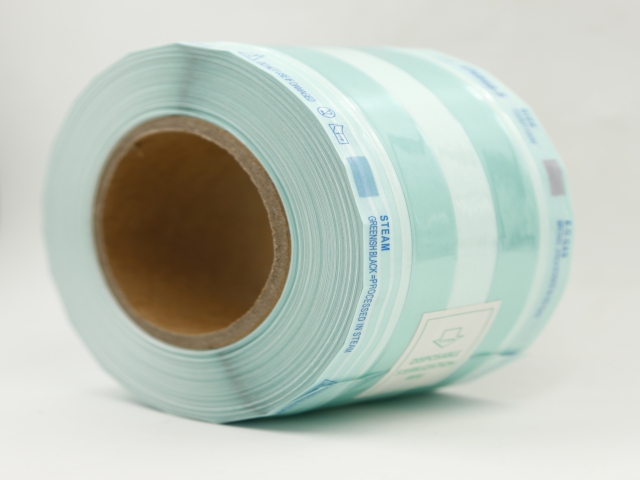

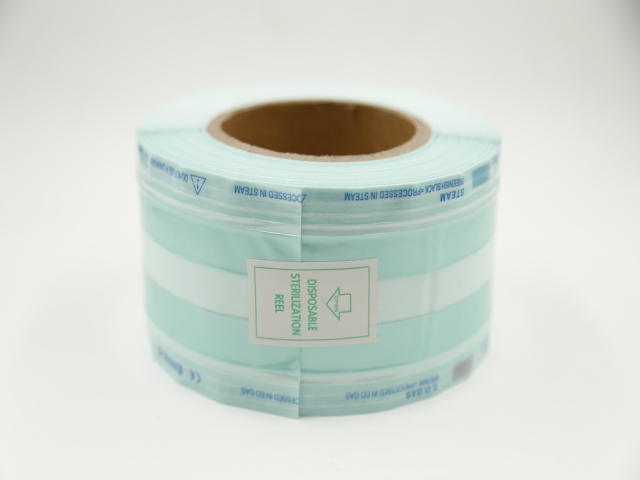

Heat Sealing Sterilization Gusseted Reel

Sterilization pouch / Roll / Reel: pouches, rolls, reel provide for an easy and fast packing process for individual instrument, smaller sets and other items while still offering reliable sterile barrier properties.

  • model：


Materials: 60gsm/70gsm Medical Grade
                 Paper/France Arjo Paper+blue/white/green medical CPP/PET Compound Film
Manufacture Standard: ISO11607-1 EN868-5 BJ-C-07/E


Features

1. 100m/roll, size can be cut according to different kind of sterilizing goods, easy to use.
2. Large sterilizing goods can be easily loaded due to gusseted design;
3. The indicator’s color has significant change and no change back; the initial blue will turn into black based on steam sterilization method;
4. Turn brown from initial pink based on ETO sterilization method;
5. The three sides explosion proof can efficient prevent the pouch from bursting;
6. The transparent compound film can show what inside the pouch clearly in order to reduce errors.


How to use
1. Apply to hospital, clinic and laboratory’s sterilization; and also apply to the disinfection of beauty products or family high-temperature;
2. Apply to both ETO sterilization and STEAM sterilization;
3. The sharp part of equipment should be put contrary to the peel side to ensure safety use;
4. Using sealing machine to seal and mark the sterilization time, contents and usage etc.
5. The clear area with temperature below 25℃ and humidity below 60% is recommended, the valid period will be 6 months after sterilizing.



Specification
ITEM SIZE(W*L) PACKING SIZE OF CTN G.W. N.W.
NO. INCH mm*mm ROLL/CTN L*W*H(mm) KG/CTN KG/CTN
LTJD.075-100 2.75’’ 75X100 8 400X210X320 10 9.5
LTJD.100-100 4’’ 100X100 6 400X210X320 10 9.5
LTJD.150-100 6’’ 150X100 4 400X210X320 10 9.5
LTJD.200-100 8’’ 200X100 2 400X210X220 7.5 7
LTJD.250-100 10’’ 250X100 2 400X210X270 8 7.5
LTJD.300-100 12’’ 300X100 2 400X210X320 10 9.5
LTJD.350-100 14’’ 350X100 2 400X210X370 11 10.5
LTJD.400-100 16’’ 400X100 2 400X210X420 12 11
