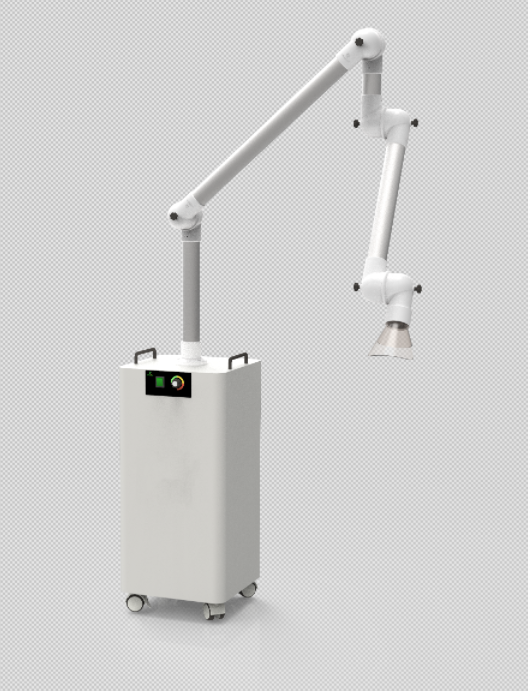

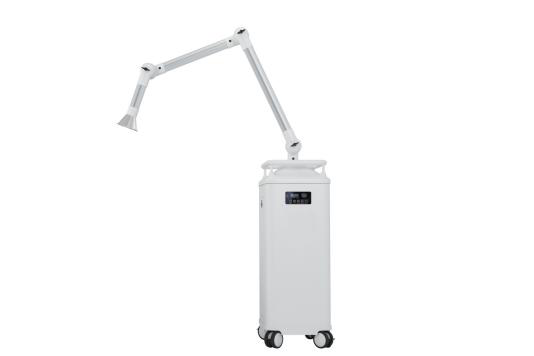

Extraoral dental suction unit

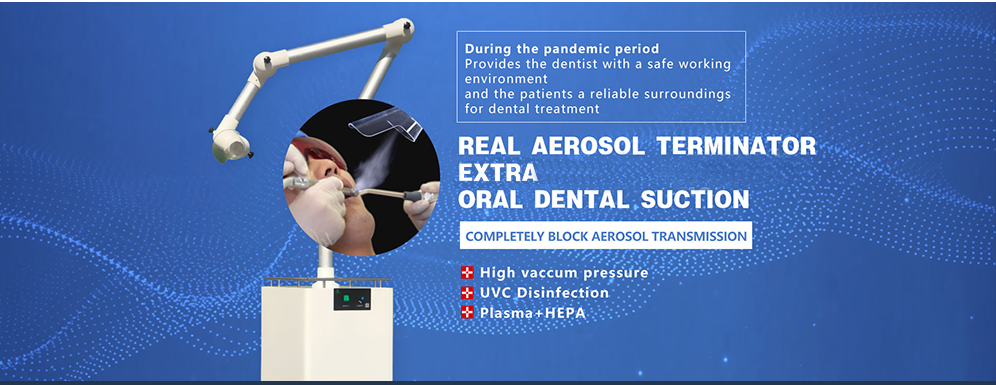

Extraoral suction unit - Health guardian for protecting doctors and patients During oral treatment.
- model： DSS-SM515
- Previous：Extraoral dental suction unit
- Next：No more
Voltage/Frequency: AC220-240/50HZ (See machine nameplate)
Power: 1000W
Noise: ≤60dB
Suction rate/wind pressure: 3000L/min(-5Kpa|)
Max Suction pressure: -20Kpa

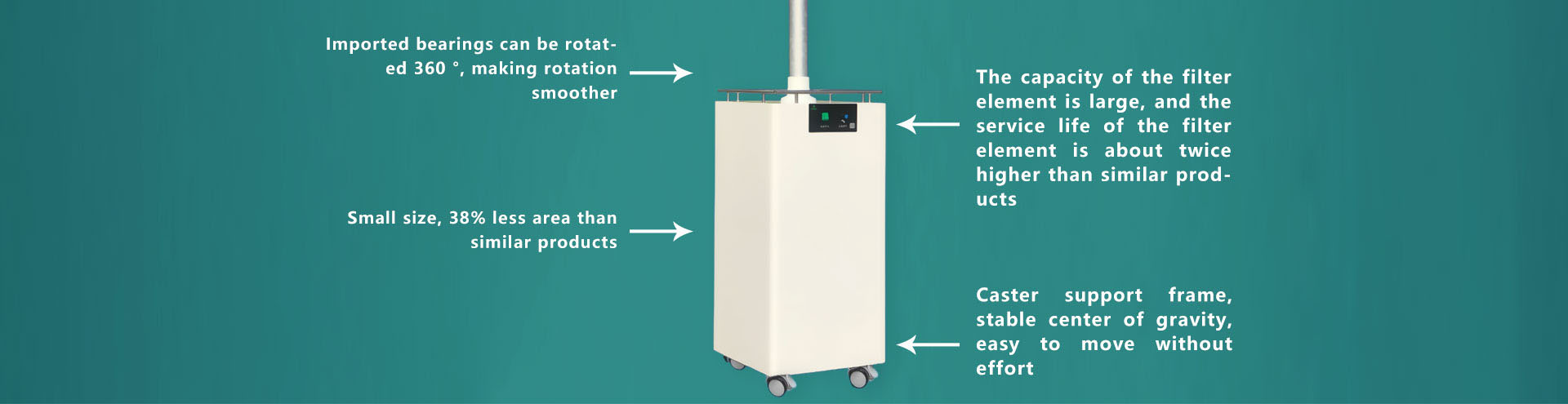

Dimensions: 325*325*875mm(without the suction tube)
Suction Tube Length: 1570mm
Filter level:HEPA14 Filter efficiency: ≥99.995%
LED-UVC Light power: 1W
Noise Control: As low as 53dB, ≤60dB for normal use

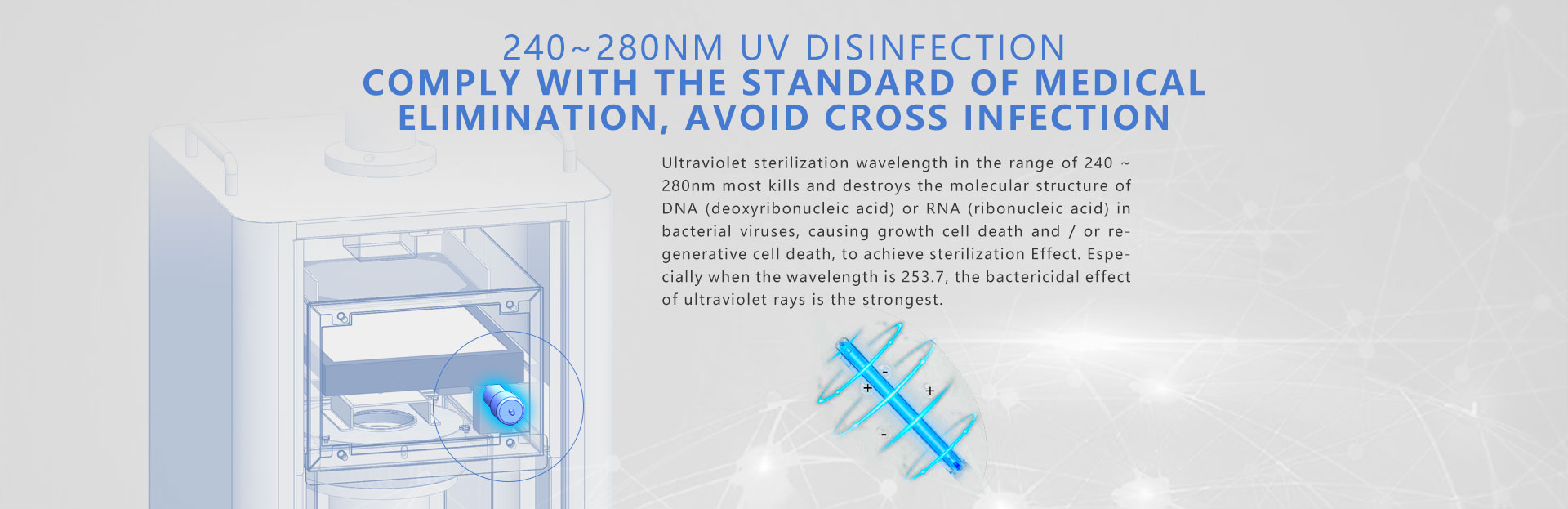

Ultra-Plasma & LED-UVC: 8000V large plasma, maximum the sterilization area and efficiency
Sensor Control: Without touching the machine, you can turn it on and off
Drain Collector: Design for worry-free maintenance, the inside cabinet becomes cleaner

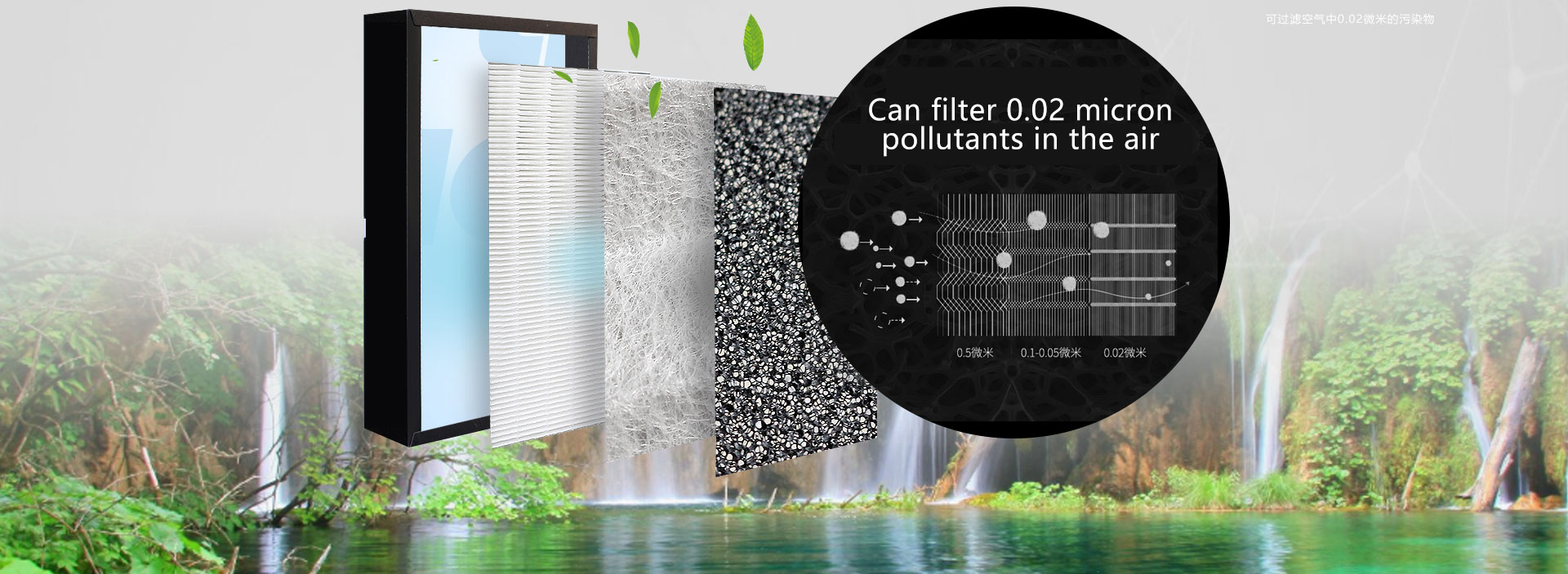

HEPA14 Filter: stops virus and bacteria -> 0.3 microns with a 99.995% efficiency.
Usage Notice:
A. Please open the right door for repair/maintenance
B. It is recommended to open the vacuum set’s cover every 5-7days to clean up the water in the water collector and rinse the filter with clean water.
C. It is recommended to open the plasma/filter’s cover every three months to clean the plasma and HEPA.
D. After using for each patient, please use the spray bottle containing disinfectant to spray the suction port 2-3 times for disinfection when the machine is running.
E. Silencers are installed in the suction arms of the first and second sections from the suction end. The recommended replacement period is three months, while cleaning the inside of the suction arm
* The above components can be properly shortened the cleaning and replacement cycle according to the increase in the use frequency of the machine. For details, please refer to the instruction manual
