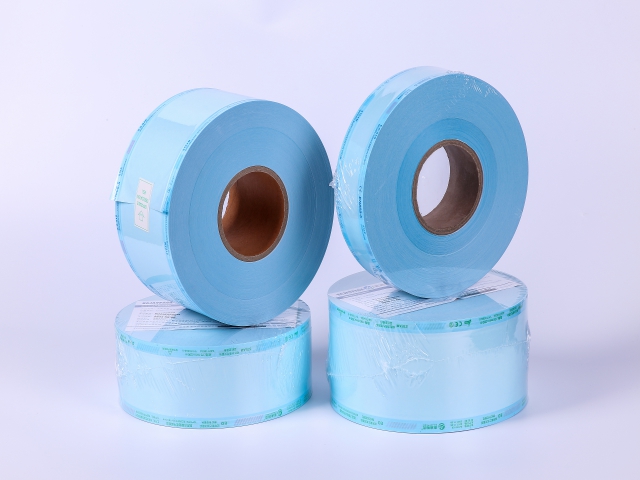

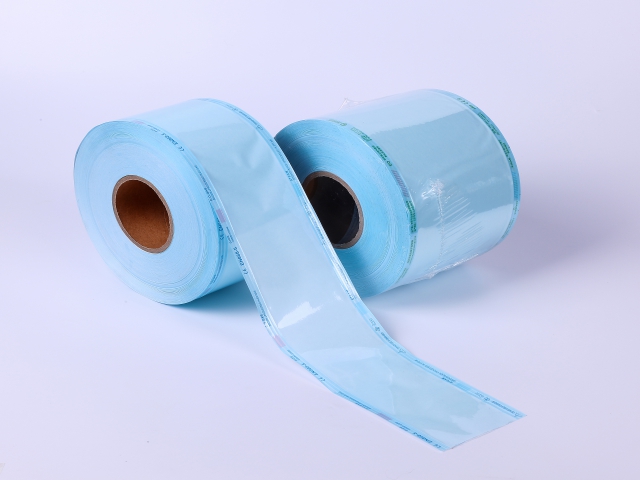

Heat Sealing Sterilization Flat Reel

Sterilization pouch / Roll / Reel: pouches, rolls, reel provide for an easy and fast packing process for individual instrument, smaller sets and other items while still offering reliable sterile barrier properties.

  • model：

Material: 60gsm/70gsm Medical Grade Paper/France Arjo Paper+Blue/White/Green medical CPP/PET Compound Film
Manufacture Standard: ISO 11607-1 EN868-5 BJ-C-07/D

Feature
1. 200m/roll, size can be cut according to different kinds of sterilizing goods, easy to use.
2. The indicator’s color has significant change and no change back; the initial blue will turn into black based on steam sterilization methood;
3. Turn brown from initial pink based on ETO sterilization method;
4. The three sides explosion-proof can efficiently prevent the pouch from bursting;
5. The transparent compound film can show what inside the pouch clearly in order to reduce errors.


 How to use
1. Apply to hospital, clinic and laboratory’s sterilization, and also apply to the disinfection of beauty products or family high-temperature;
2. Apply to both ETO sterilization and STEAM sterilization;
3. The sharp part of equipment should be put contrary to the peel side to ensure safety use;
4. Using sealing machine to seal and mark the sterilization time, contents and usage etc.
5. The clear area with temperature below 25℃ and humidity below 60% is recommended, the valid period will be 6 months after sterilizing.


Specification
ITEM SIZE（W*L） PACKING SIZE OF CTN G.W. N.W.
NO. INCH mm*mm ROLL/CTN L*W*H KG/CTN KG/CTN
JD.050-200 2’’ 50X200 12 420X220X320 15.5 15
JD.055-200 2.2’’ 55X200 12 420X220X350 16.5 16
JD.075-200 2.75’’ 75X200 8 420X220X320 14.5 14
JD.100-200 4’’ 100X200 6 420X220X320 14.5 14
JD.125-200 5’’ 125X200 4 420X220X270 12 11.5
JD.150-200 6’’ 150X200 4 420X220X320 14.5 14
JD.200-200 8’’ 200X200 2 420X220X220 10 9.5
JD.250-200 10’’ 250X200 2 420X220X270 12 11.5
JD.300-200 12’’ 300X200 2 420X220X320 15.5 15
JD.350-200 14’’ 350X200 1 220X220X370 8.5 8
JD.400-200 16’’ 400X200 1 220X220X420 10 9.5
