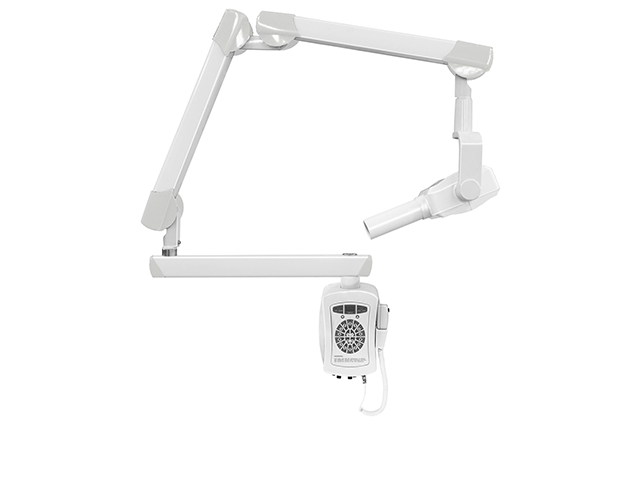

Dental X-Ray Unit Wall Type

Dental X-rays (radiographs) are images of your teeth that your dentist uses to evaluate your oral health. These X-rays are used with low levels of radiation to capture images of the interior of your teeth and gums.

  • model： DXU-SM220

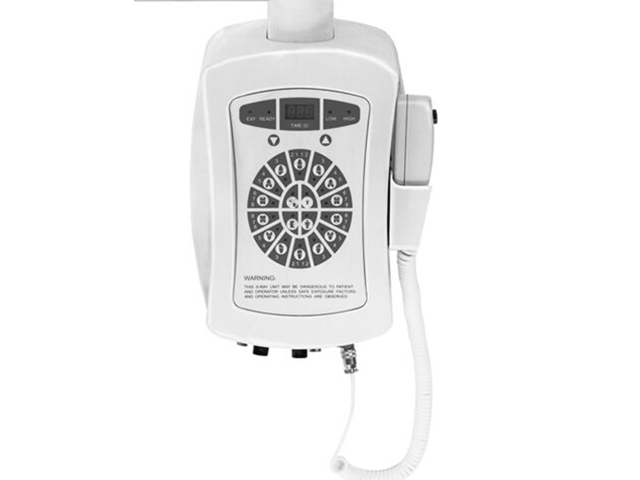

Digital touch button, simple operation, just press one button can quickly and accurately determines the parameter, all teeth there is accordingly button, it prevents that dentist in mistaking operation. It is the ideal assistant for dentist.


Features:
· Using the international advanced technology, efficient integrated design, high efficiency, low radiation.
· Using microcomputer intelligent control, not only remote controlled exposure, but more powerful function of low voltage alarm and high voltage protection.
· Micro focus technology, much more clear image and accurate diagnosis.
· Wide use, save more space, more convenient to use.
· It can use light room dental film, imaging in one minute, maximum convenient dentist to diagnose.
· It can connect to dental digital imaging system, that is indispensable for clinicians to diagnose and root canal filing.

Specifications:
Power supply: AC220V±10%, 50HA, 1KVA
Total filtration: 2.5mmAL
Tube voltage: 70KV
Exposure time: 0.2-4s
Tube current: 8mA
Leak radiation: outside one meter ≤0.002Mg/h （national standard:0.25Mg/h ）
Focus size: 1.5mm/0.8mm
Package size: 98*32*45(cm)
Net weight: 27kgs
Rough weight: 35kgs

Precautions
1. In order to operate safe, must be installed properly good ground.
2. X-ray machine due to small thermal capacity is limited, should pay attention to intermittent operation is recommended.
3. The machine only during exposure, will produce X-rays, power-off state does not produce X-rays, as long as it does not produce radiation exposure is not under power on state.
4. The machine is in the correct use, any unforeseen circumstances, please immediately cut off the power operator, discontinue use. After the aircraft maintenance standards, it can be used again.
Additional filtration plate 5. The machine factory, each X-ray device is equipped with the following specifications: 1.0 / 0.5mm aluminum each one.
6. When disassembling the machine each time, first disassemble the nose and then split the other member.
8. After each use the machine, arm recovery highest point, the position of the head is placed equilibrium position.
9. After each use of medical alcohol exposure in some patients with end beam tube disinfection, cleaning.
10. The weekly machine surface with a dry cloth to clean, inspect each connector contact.
11. Note that the machine maintenance and inspection indicator that shows whether the knobs, switches, remote control is working properly; X-ray source assembly if possible oil leakage; when the X-ray source assemblies exposure, abnormal noise; mechanical portions of the fastening screws loosening the like.
12. The machine rated capacity of 1.1kW, please use the greater than 1.5kW power supply capacity or grid. If the regional grid voltage is not normal, we recommend supporting more than 1.5KW industrial regulator, to prevent damage to the machine voltage is not normal, reducing machine life.
