Silent Oil-Free Compressors
Oil-free air supply. Seven configurations.
- model： Series overview
- Previous：No more
- Next：CAD/CAM Air Compressors
Explore seven Shieldmedical oil-free air compressors for compatible dental, laboratory and equipment air-supply applications. Choose a compact vertical-tank configuration or a larger horizontal-tank system to suit your installation.
7 modelsConfiguration optionsOil-freeCompression mechanism8 barListed max. pressure
Select an air-supply configuration
Oil-free compression
The compression mechanism does not require lubricating oil. Select suitable downstream treatment for the air quality your equipment needs.
Low-noise design
The series is presented as a low-noise compressor range. Request model-specific noise information and measurement conditions for your installation.
Seven model options
DC-SM11 to DC-SM17 offer different motor, airflow and tank configurations. Confirm the selected model against your air demand.
Up to 8 bar
The supplied specifications list a maximum working pressure of 0.8 MPa / 8 bar for the series.
Installation choice
Product photographs show compact vertical-tank and larger horizontal-tank arrangements, with different dimensions and layouts.
Application matching
Specify your required flow, operating pressure, duty cycle, moisture limits and filtration needs so the configuration can be checked.
Compare seven models
| Model | Motor power | Airflow at 5 bar | Tank capacity | Max. pressure | Net weight |
|---|---|---|---|---|---|
| DC-SM11 | 550 W | 106 L/min | 25 L | 0.8 MPa / 8 bar | 23 kg |
| DC-SM12 | 850 W | 138 L/min | 40 L | 0.8 MPa / 8 bar | 28 kg |
| DC-SM13 | 1100 W | 202 L/min | 40 L | 0.8 MPa / 8 bar | 36 kg |
| DC-SM14 | 1700 W | 276 L/min | 55 L | 0.8 MPa / 8 bar | 41 kg |
| DC-SM15 | 2550 W | 414 L/min | 100 L | 0.8 MPa / 8 bar | 68 kg |
| DC-SM16 | 3300 W | 606 L/min | 120 L | 0.8 MPa / 8 bar | 101 kg |
| DC-SM17 | 4400 W | 808 L/min | 120 L | 0.8 MPa / 8 bar | 135 kg |
Airflow values are specified at 5 bar, as confirmed by the supplier. Confirm delivery at your required operating pressure, duty cycle, air-treatment requirements and electrical supply before ordering.
Product photographs

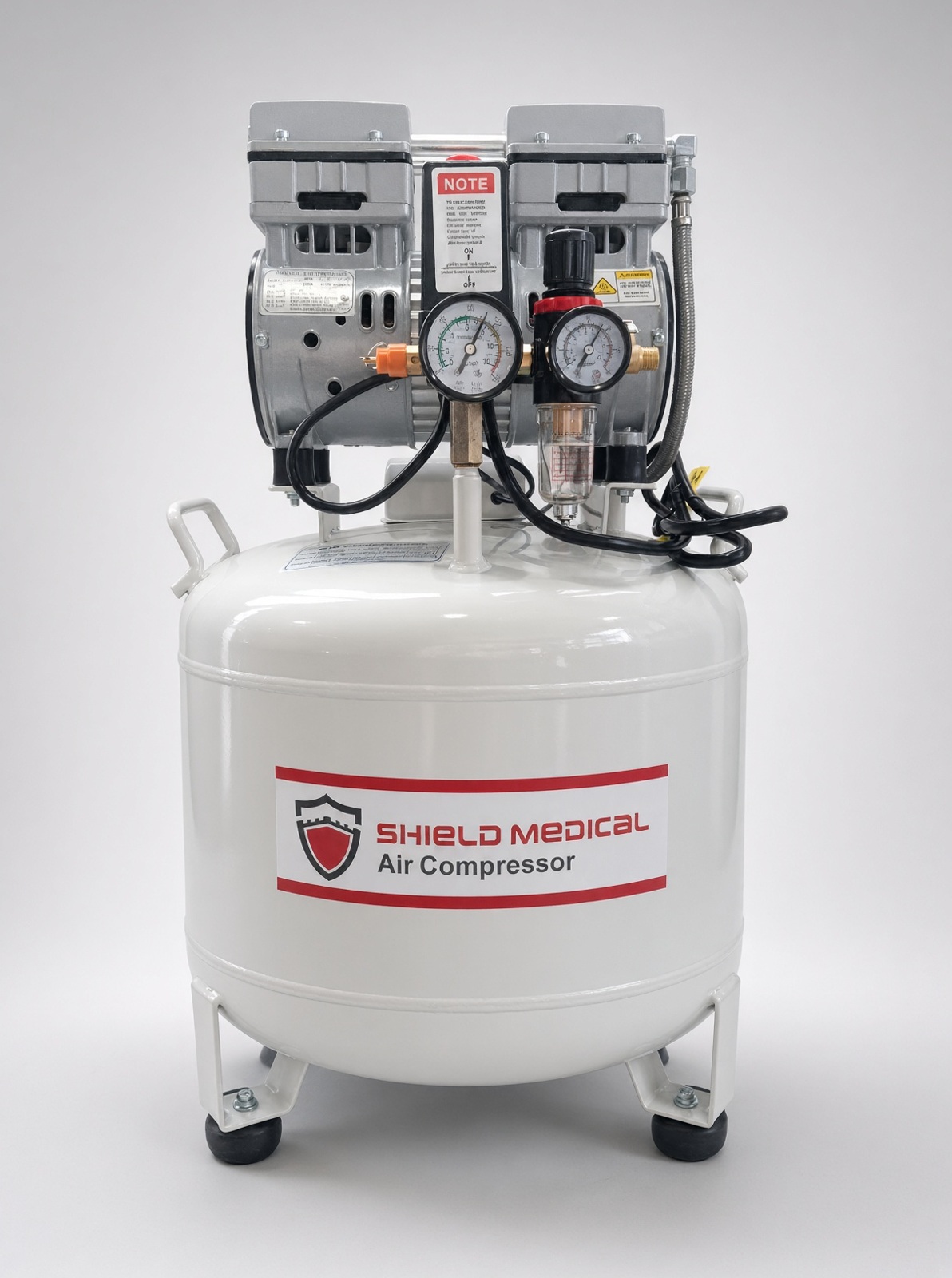

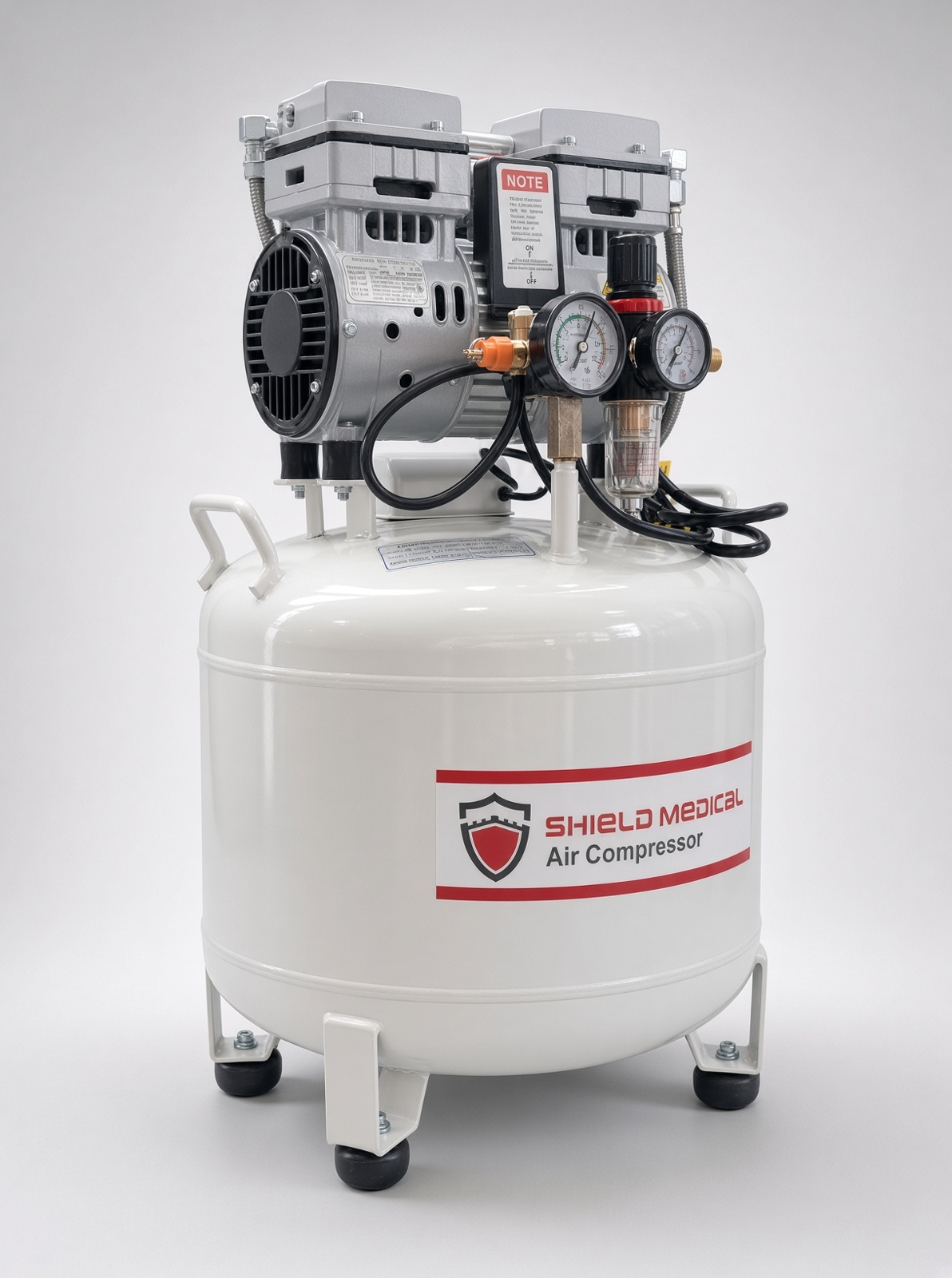

DC-SM12

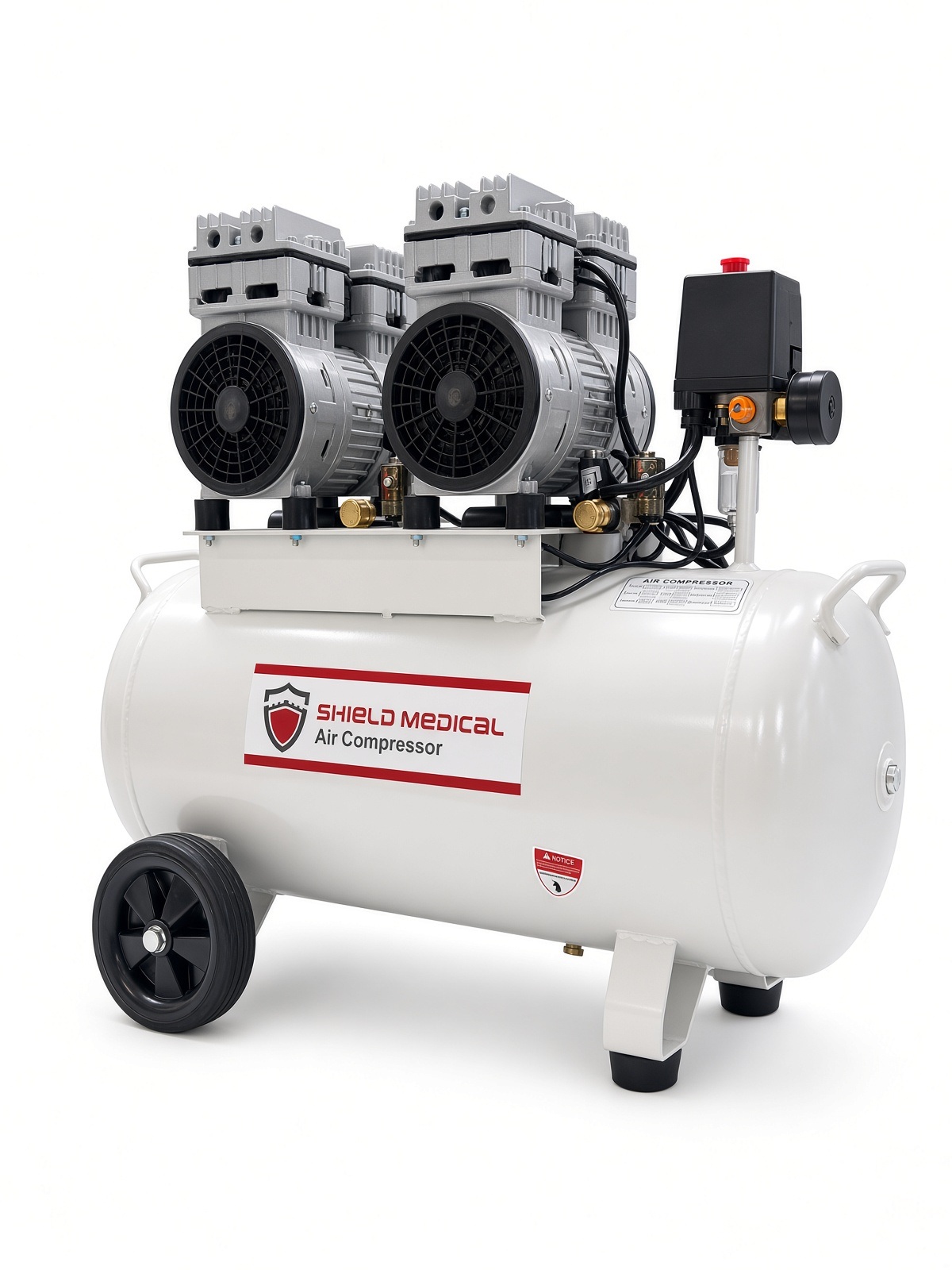

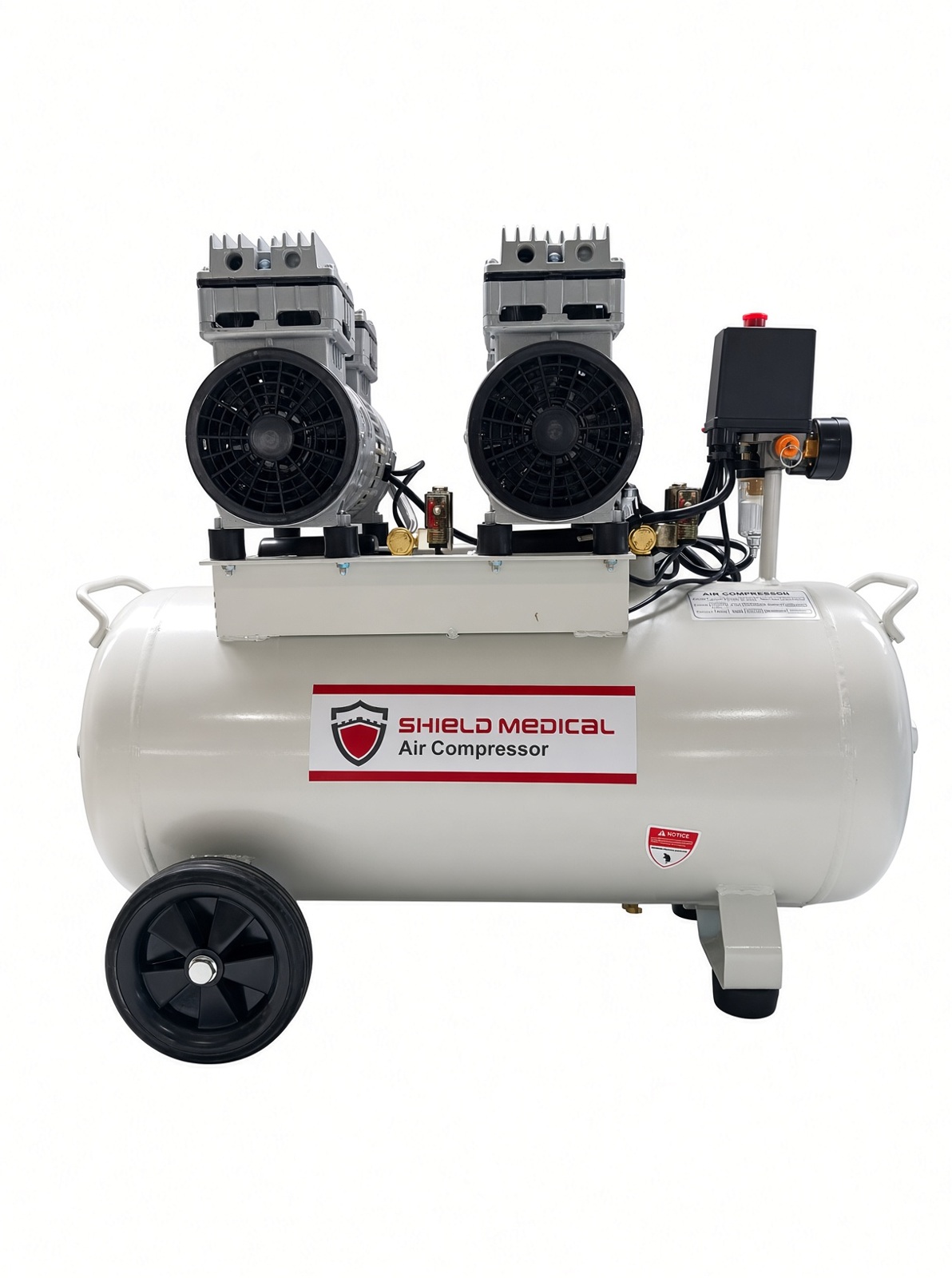

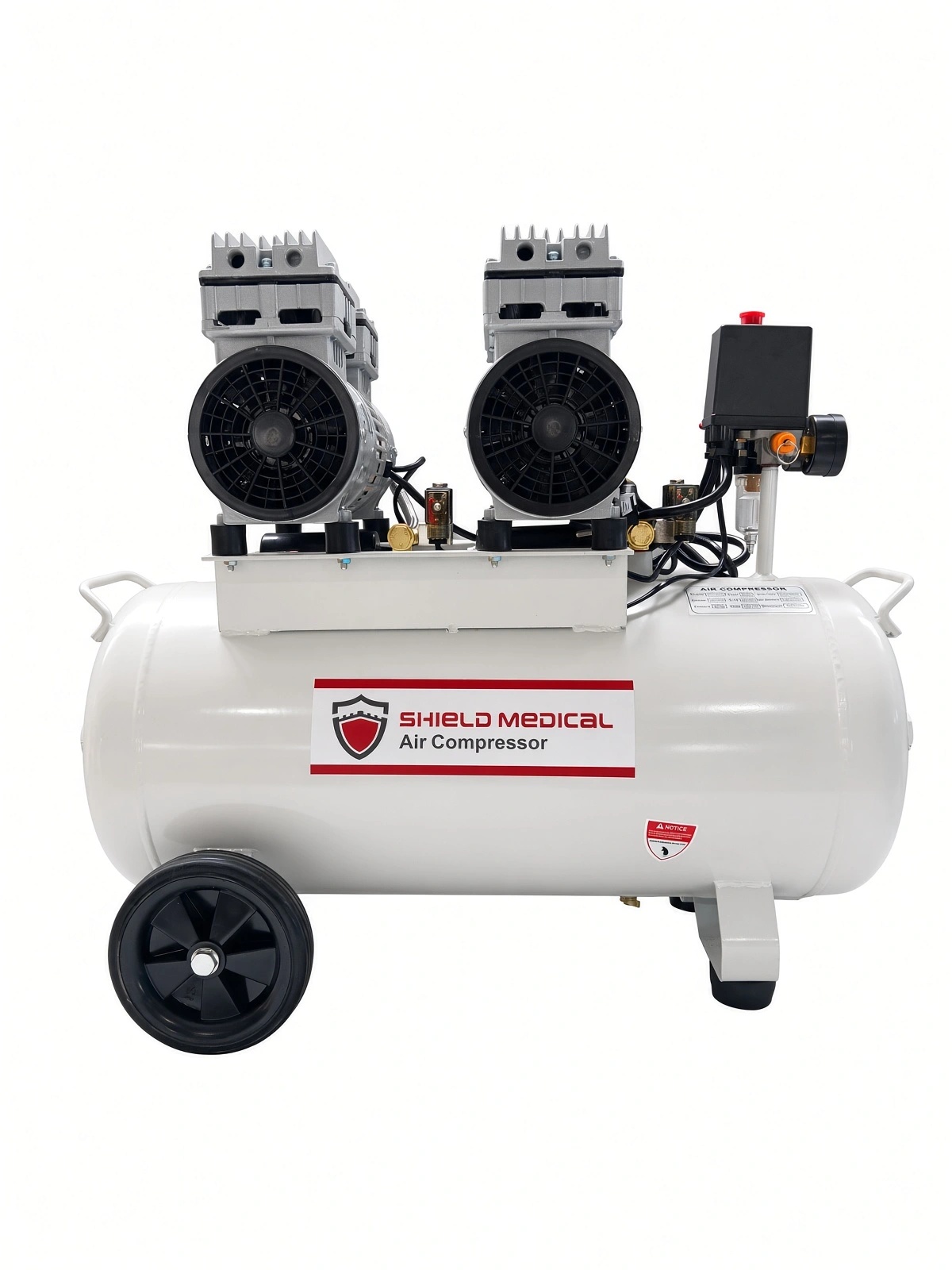

DC-SM14

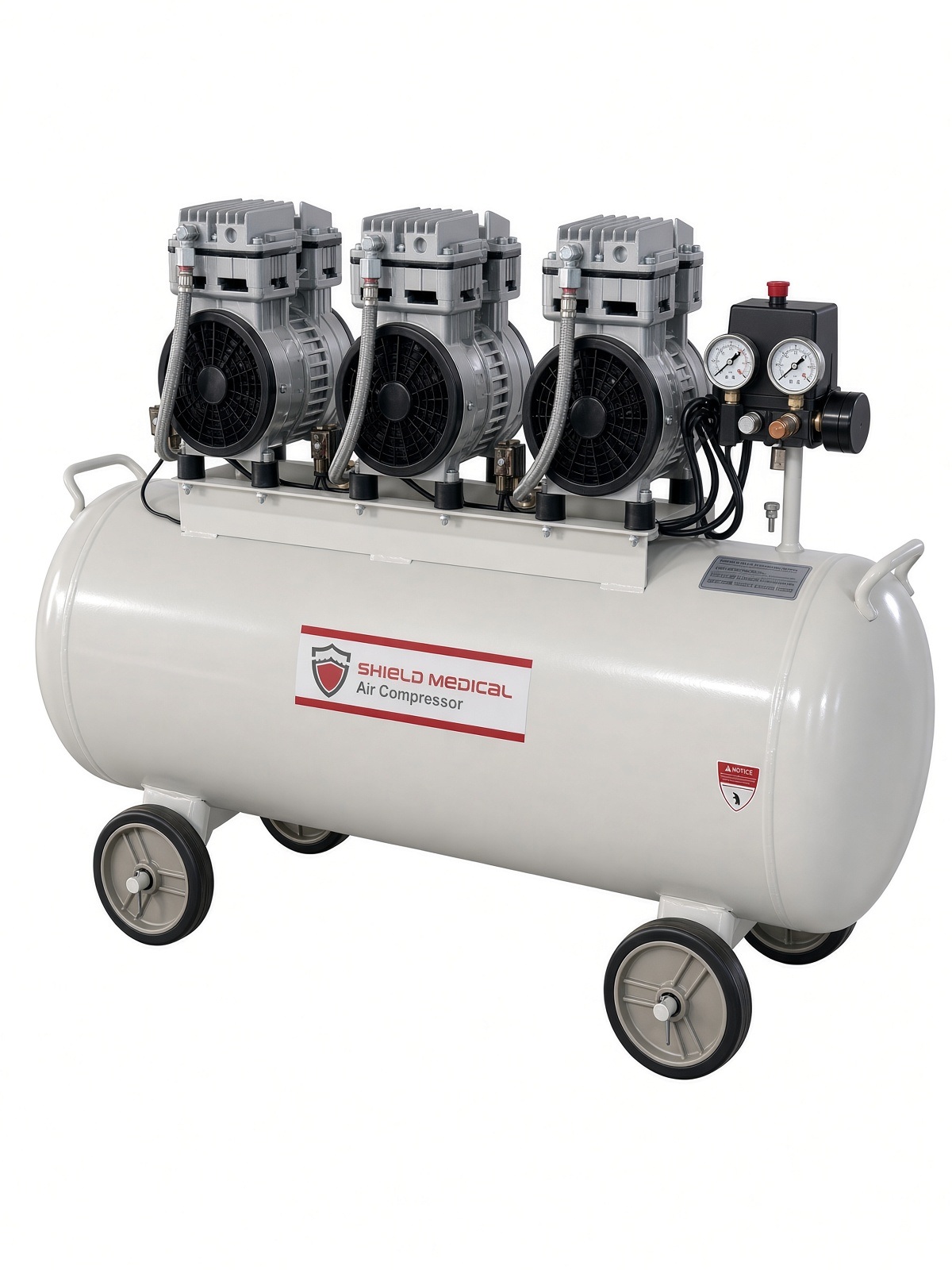

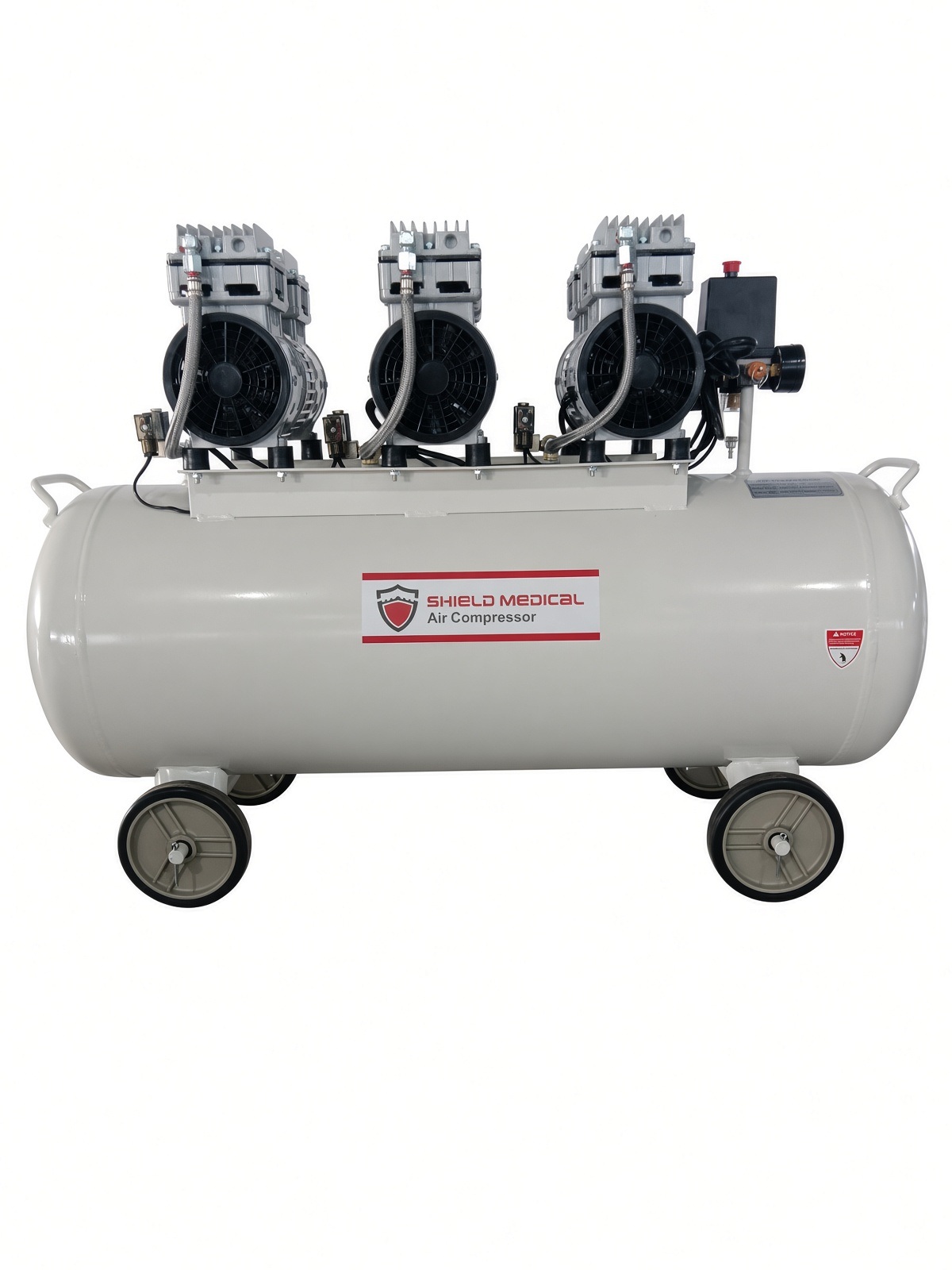

DC-SM15
DC-SM11 specifications
| Motor power | 550 W |
|---|---|
| Airflow at 5 bar | 106 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 25 L |
| Net weight | 23 kg |
| Product dimensions (L × W × H) | 410 × 410 × 580 mm |
| Electrical supply | 110V or 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
DC-SM12 specifications
| Motor power | 850 W |
|---|---|
| Airflow at 5 bar | 138 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 40 L |
| Net weight | 28 kg |
| Product dimensions (L × W × H) | 410 × 410 × 720 mm |
| Electrical supply | 110V or 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
DC-SM13 specifications
| Motor power | 1100 W |
|---|---|
| Airflow at 5 bar | 202 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 40 L |
| Net weight | 36 kg |
| Product dimensions (L × W × H) | 410 × 410 × 800 mm |
| Electrical supply | 110V or 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
DC-SM14 specifications
| Motor power | 1700 W |
|---|---|
| Airflow at 5 bar | 276 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 55 L |
| Net weight | 41 kg |
| Product dimensions (L × W × H) | 900 × 380 × 750 mm |
| Electrical supply | 110V or 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
DC-SM15 specifications
| Motor power | 2550 W |
|---|---|
| Airflow at 5 bar | 414 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 100 L |
| Net weight | 68 kg |
| Product dimensions (L × W × H) | 1140 × 430 × 710 mm |
| Electrical supply | 110V or 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
DC-SM16 specifications
| Motor power | 3300 W |
|---|---|
| Airflow at 5 bar | 606 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 120 L |
| Net weight | 101 kg |
| Product dimensions (L × W × H) | 1250 × 480 × 830 mm |
| Electrical supply | 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
DC-SM17 specifications
| Motor power | 4400 W |
|---|---|
| Airflow at 5 bar | 808 L/min |
| Maximum working pressure | 0.8 MPa / 8 bar |
| Tank capacity | 120 L |
| Net weight | 135 kg |
| Product dimensions (L × W × H) | 1440 × 510 × 900 mm |
| Electrical supply | 220V (confirm ordered version) |
| Warranty | 1 year, subject to agreed terms |
More product views

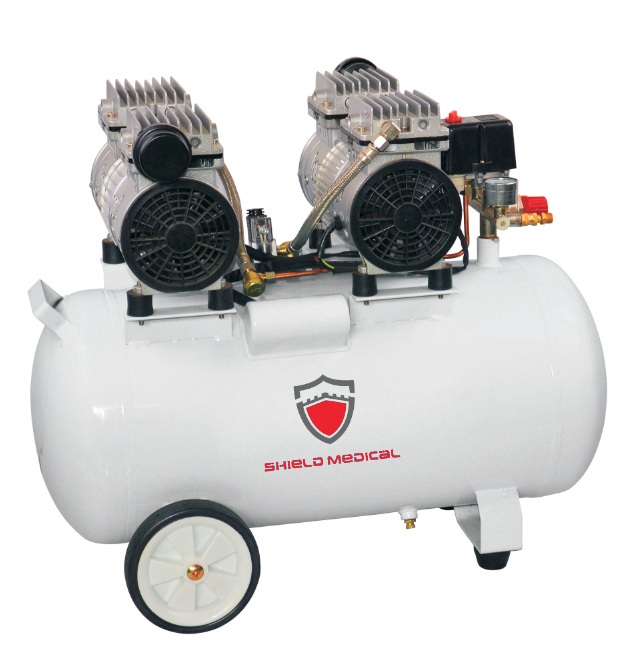

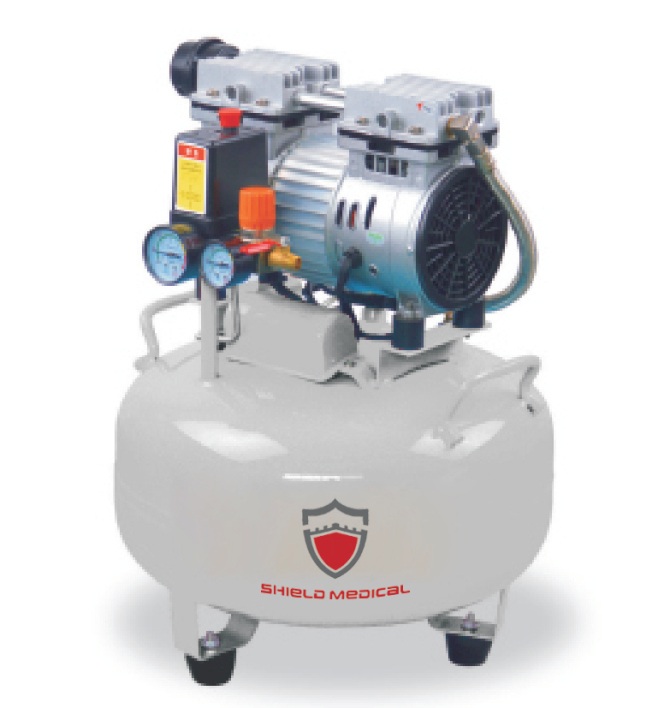

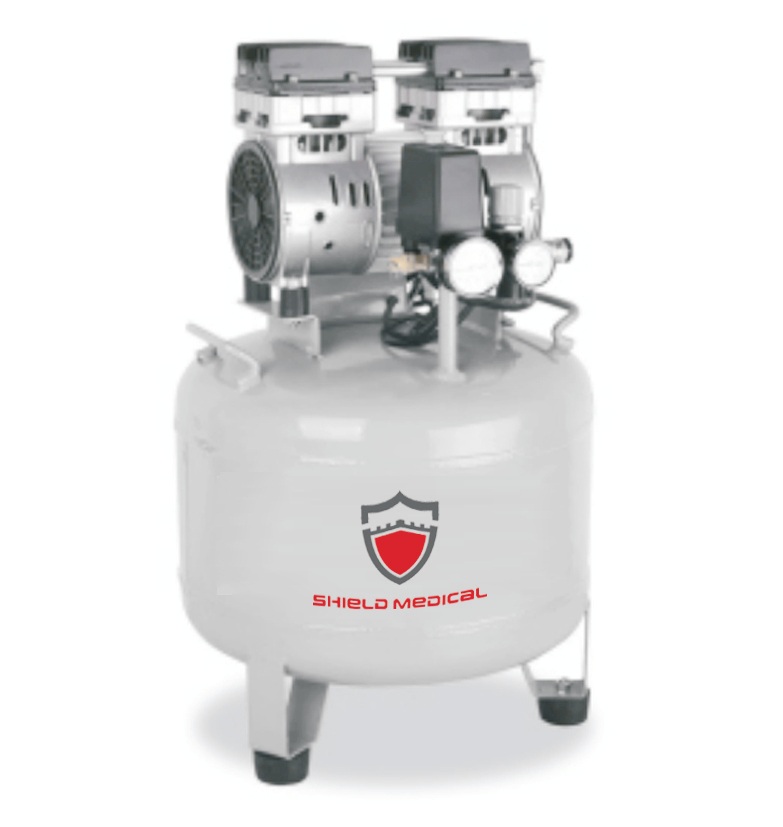

Series configuration examples
Frequently asked questions
At what pressure are the airflow values specified?
The published airflow values are specified at 5 bar. The series maximum working pressure is 8 bar; the 5 bar flow figures should not be treated as delivery at 8 bar.
Does oil-free mean the air is dry or sterile?
Oil-free describes the compression mechanism. It does not establish a moisture level, sterile air or an air-purity classification. Confirm dryer and filtration requirements for your equipment.
Is a dryer included?
The supplied documents do not establish a dryer as standard equipment across all models. Confirm air treatment and drainage options when ordering.
Can these compressors run continuously?
Continuous-duty capability and an operating duty cycle are not provided. Request model-specific confirmation for sustained air demand.
Which voltage should I select?
The catalog lists 110–220V for SM11–SM15 and 220V for SM16–SM17. Specify your supply voltage and confirm the ordered version; automatic dual-voltage operation is not established.
Request a quote
Tell us your preferred model, supply voltage, operating pressure, airflow, duty cycle and air quality needs.
