Oil-Free Air Compressors for Dental CAD/CAM

DENTAL CAD/CAM AIR SUPPLY

Compressed air for your CAD/CAM workflow.

Shieldmedical offers six oil-free air compressor models for dental CAD/CAM air-supply applications. Choose a 40L, 60L or 90L tank and a configuration with or without an air dryer. The series combines one, two or three compressor units to cover different compressed-air requirements.

40 / 60 / 90 LTank capacities6 modelsDryer options5–8 barWorking range

Request a Quote

Choose your configuration

WITHOUT AIR DRYER

Practical options for your installation

Oil-free compression

Oil-free compressor units provide an air source for compatible dental CAD/CAM equipment.

Three tank sizes

Choose a 40L vertical tank, a 60L horizontal tank or a 90L horizontal tank to suit your installation.

Air dryer options

DC-SM02, DC-SM04 and DC-SM06 include an air dryer. The supplied catalog also shows a condenser on these configurations.

One to three compressor units

Each compressor unit is listed at 1.38 kW. The dual and triple configurations have combined rated motor power of 2.76 kW and 4.14 kW.

5–8 bar working range

The supplied catalog lists a working pressure range of 0.5–0.8 MPa. The quotation lists 8 bar for all models.

One-year warranty

All six models are listed with a one-year warranty. Contact Shieldmedical for the applicable warranty terms.

Compare the six models

Model	Compressor units	Rated motor power	Tank	Listed airflow @5 bar	Declared noise	Air dryer

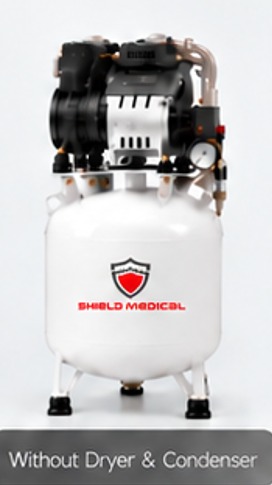

DC-SM01	1	1.38 kW	40 L / vertical	160 L/min	≤68 dB	Without dryer

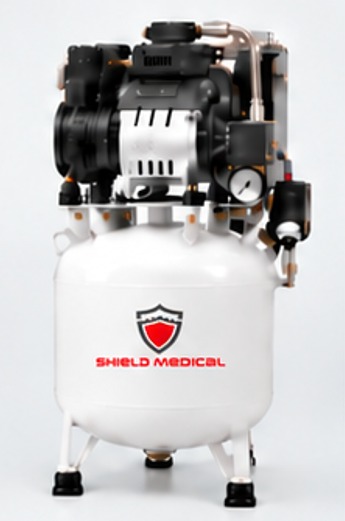

DC-SM02	1	1.38 kW	40 L / vertical	160 L/min	≤68 dB	With dryer

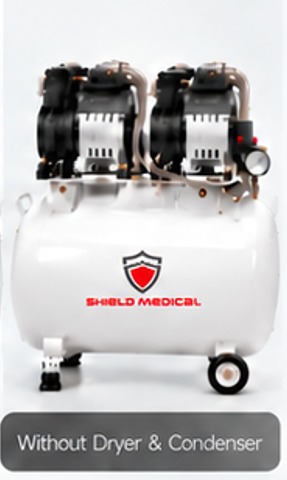

DC-SM03	2	2.76 kW	60 L / horizontal	320 L/min	≤76 dB	Without dryer

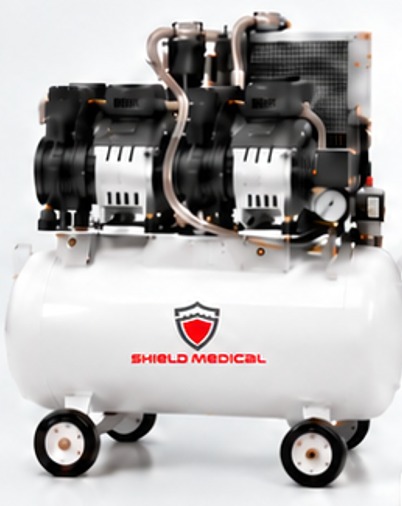

DC-SM04	2	2.76 kW	60 L / horizontal	320 L/min	≤76 dB	With dryer

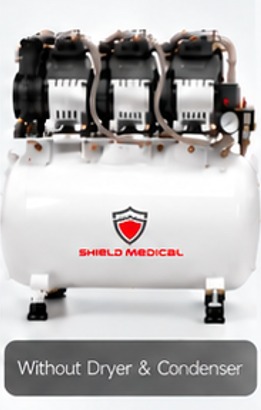

DC-SM05	3	4.14 kW	90 L / horizontal	480 L/min	≤76 dB	Without dryer

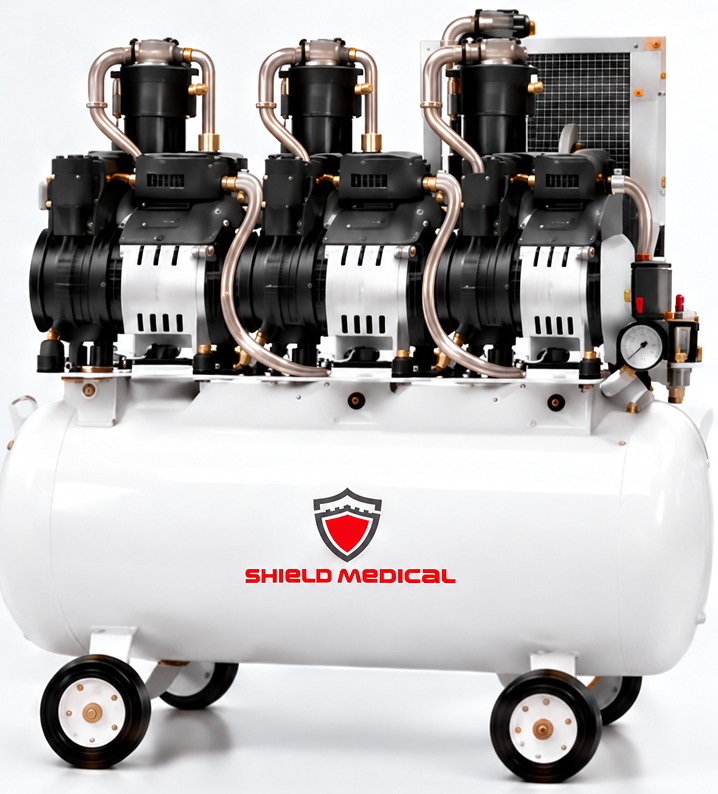

DC-SM06	3	4.14 kW	90 L / horizontal	480 L/min	≤76 dB	With dryer

Airflow values are listed at 5 bar. Actual usable flow depends on pressure, installation and air-treatment configuration. For models with an air dryer, confirm the flow available after air treatment and the air-quality requirements of the connected equipment. Noise values are declared in the supplied specifications; measurement conditions should be confirmed.

Dental CAD/CAM applications

Air supply for compatible milling equipment and dental laboratory equipment. Confirm the connected equipment’s airflow, pressure, duty cycle and air-quality requirements before selection.

Series overview

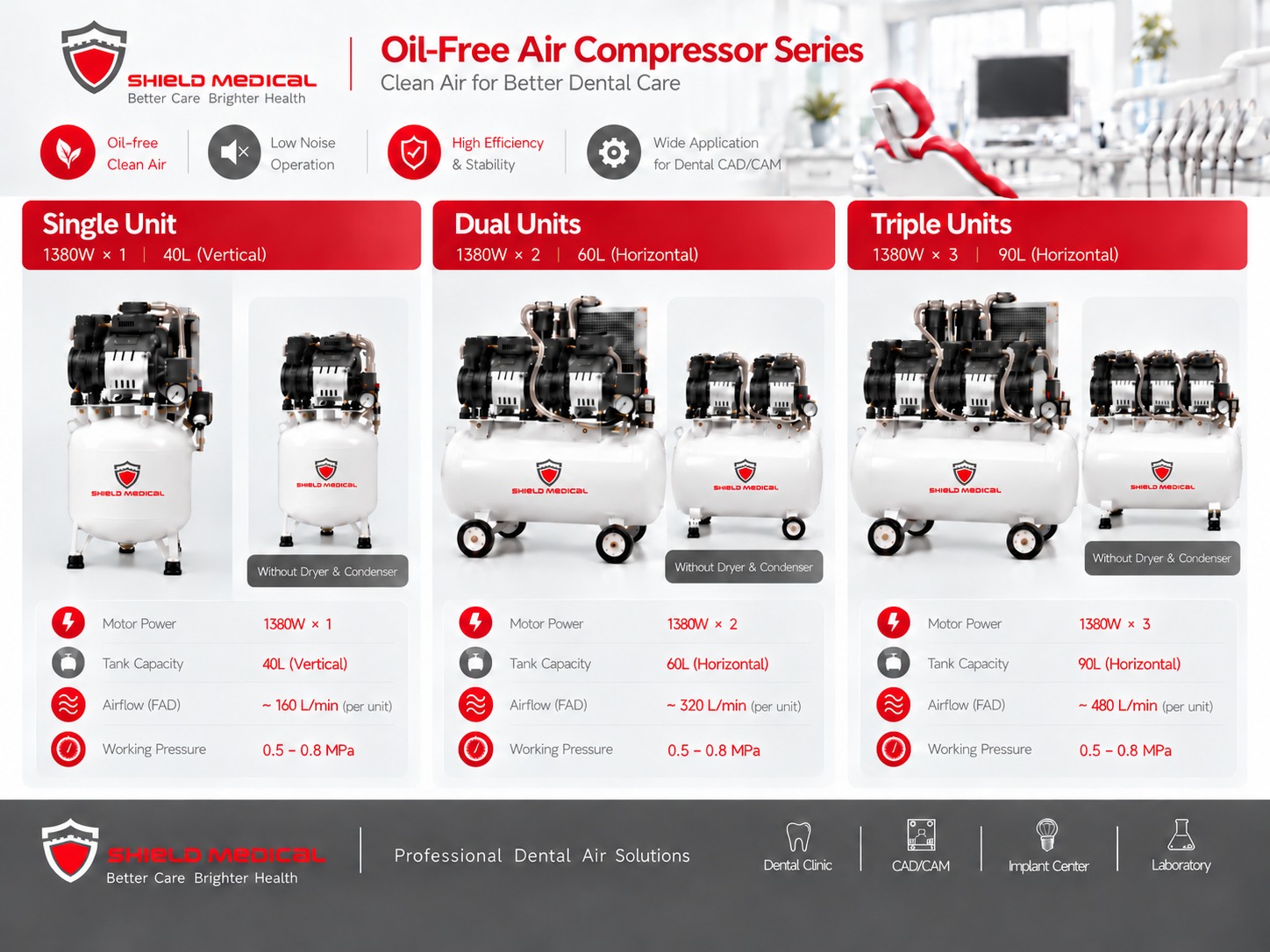

Shieldmedical compressor series catalog showing 40L, 60L and 90L configurations

Frequently asked questions

Which model is suitable for my milling machine?

Share the milling machine model, required airflow at operating pressure, duty cycle, electrical supply and air-quality requirements. Selection should be based on those requirements rather than tank capacity alone.

Which models include an air dryer?

DC-SM02 (40L), DC-SM04 (60L) and DC-SM06 (90L) are listed with an air dryer. DC-SM01, DC-SM03 and DC-SM05 are the configurations without a dryer and condenser shown in the catalog.

Can one compressor serve several machines?

The total simultaneous demand and required outlet pressure must be checked. The supplied documents do not specify a guaranteed number of connected milling machines.

What air quality does the system deliver?

The compressors are specified as oil-free, with air dryer options. The supplied documents do not state a tested pressure dew point or an ISO 8573-1 air-quality class. Confirm the required specification before purchase.

Are voltage and frequency specified?

Voltage, frequency and electrical connection details are not included in the supplied quotation. Please confirm the required electrical supply when requesting a quote.

Find the configuration for your equipment

Tell us your equipment model, airflow and pressure requirements, operating pattern, electrical supply and required air quality.
