Sterilization Packaging
Packaging options for your instrument workflow.
- model： Series overview
- Previous：No more
- Next：No more
Explore Shieldmedical sterilization packaging in self-sealing and heat-sealing formats. Choose preformed pouches or cut-to-length reels, with flat and gusseted options for different instrument and packaging requirements.
5 formatsPackaging categories25 sizesListed standard itemsCustomPouch options
Request a QuoteChoose a packaging format
Self-Sealing Sterilization Pouches
Preformed paper-film pouches with an adhesive closure for sealing without a heat-sealing machine.
View specificationsHeat-Sealing Flat Pouches
Flat sterilization pouches designed to be closed using a suitable heat-sealing machine.
View specificationsHeat-Sealing Flat Sterilization Reels
Paper-film reels that can be cut to the required pouch length and closed with a compatible heat sealer.
View specificationsHeat-Sealing Gusseted Sterilization Reels
Gusseted paper-film reels provide additional space for larger compatible items and can be cut to length before sealing.
View specificationsGusseted Paper & Paper-Film Pouches
Preformed gusseted pouch options in paper and paper-film constructions, with sizes and printed content available to order.

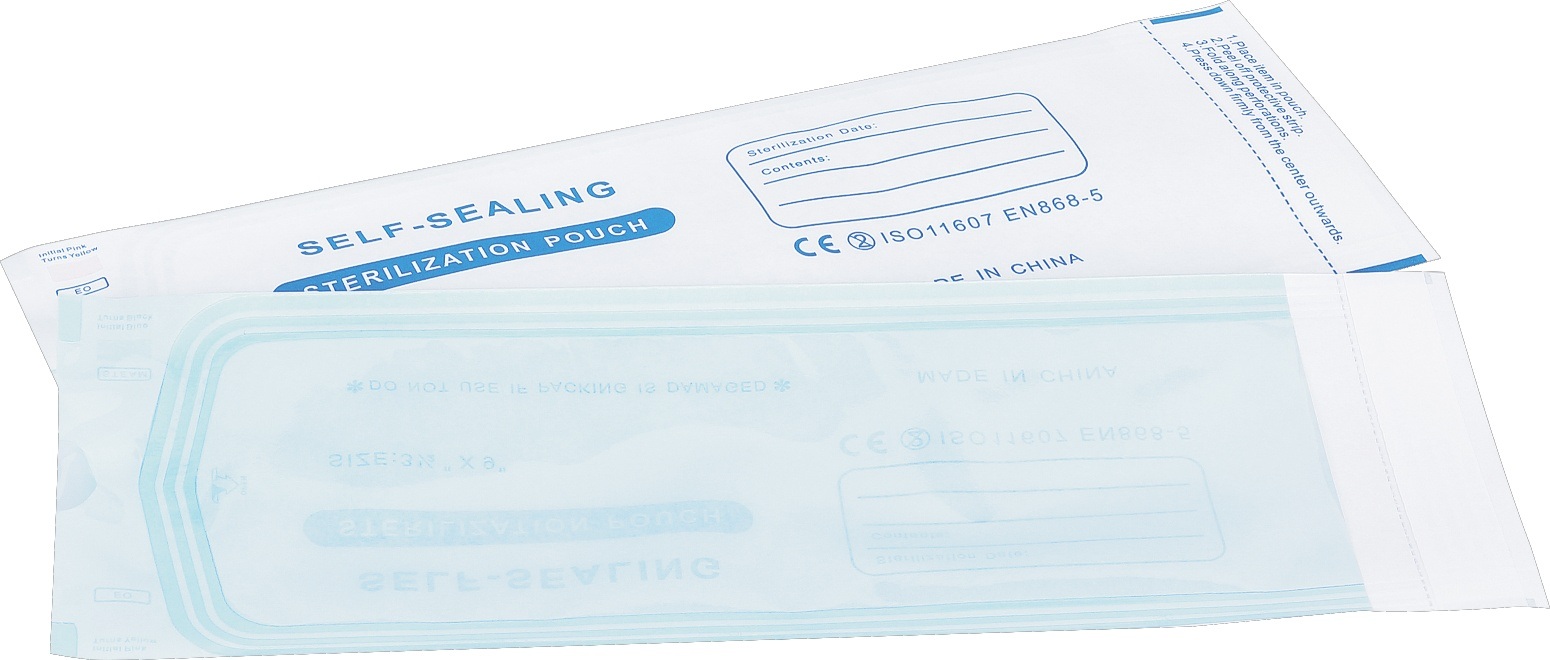

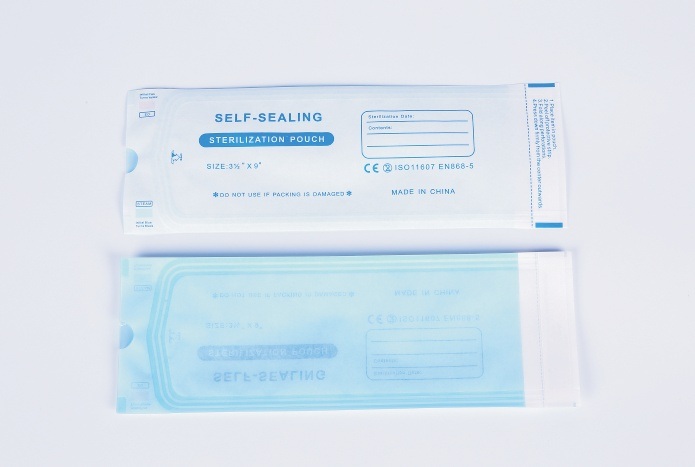

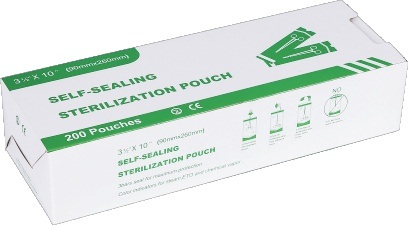

View specificationsSelf-Sealing Sterilization Pouches
- Adhesive closure
- Transparent film for viewing contents
- Nine listed metric sizes
- 200 pieces per box
60 or 70 gsm medical-grade paper with CPP/PET composite film and medical adhesive tape, as listed in the brochure.
| Item code | Width × length (mm) | Pieces / box | Boxes / carton |
|---|---|---|---|
| ZFD.057-90 | 57 × 90 | 200 | 60 |
| ZFD.057-130 | 57 × 130 | 200 | 60 |
| ZFD.070-260 | 70 × 260 | 200 | 20 |
| ZFD.090-135 | 90 × 135 | 200 | 20 |
| ZFD.090-165 | 90 × 165 | 200 | 20 |
| ZFD.090-260 | 90 × 260 | 200 | 20 |
| ZFD.135-260 | 135 × 260 | 200 | 10 |
| ZFD.135-280 | 135 × 280 | 200 | 10 |
| ZFD.190-360 | 190 × 360 | 200 | 5 |
Steam and ethylene oxide (EO) are listed in the brochure. Confirm the exact product’s instructions and cycle compatibility.

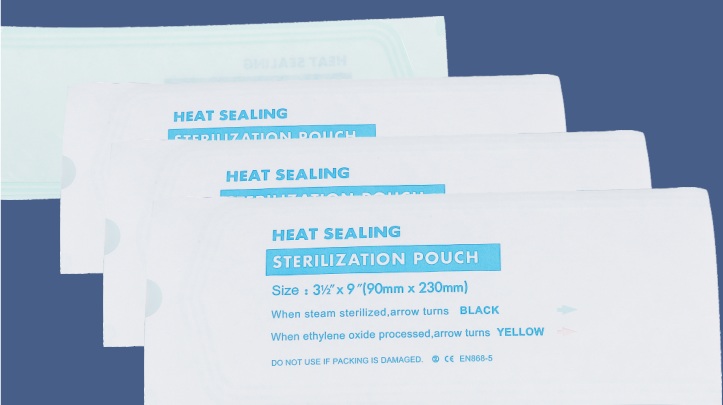

Heat-Sealing Flat Pouches
- Heat-sealing closure
- Custom sizes and printing on request
- Optional indicator configuration
- Packaging quantities specified to order
Paper-film and coated-paper/film constructions are listed. Confirm the selected paper weight and film or coating specification.
| Configuration | Availability |
|---|---|
| Dimensions | Made to order |
| Printed content | Customized on request |
| Indicator | Available on request; confirm process compatibility |
| Packing | Specified to order |
EO and gamma irradiation are listed in the text. Product artwork also refers to steam; method suitability must be confirmed for the ordered construction.
Heat-Sealing Flat Sterilization Reels
- 200 m per roll
- Eight listed widths from 50 to 400 mm
- Cut-to-length pouch preparation
- Transparent film
60 or 70 gsm medical-grade paper with CPP/PET composite film, as listed in the brochure.
| Item code | Width (mm) | Length / roll (m) | Rolls / carton |
|---|---|---|---|
| JD.050-200 | 50 | 200 | 12 |
| JD.075-200 | 75 | 200 | 8 |
| JD.100-200 | 100 | 200 | 6 |
| JD.150-200 | 150 | 200 | 4 |
| JD.200-200 | 200 | 200 | 2 |
| JD.250-200 | 250 | 200 | 2 |
| JD.300-200 | 300 | 200 | 2 |
| JD.400-200 | 400 | 200 | 1 |
Steam and EO are listed in the brochure. Confirm the exact product’s instructions and cycle compatibility.

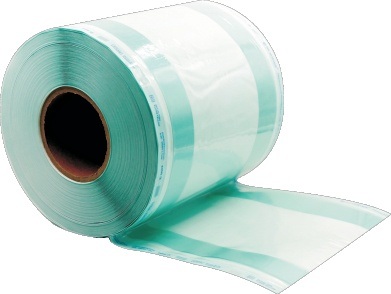

Heat-Sealing Gusseted Sterilization Reels
- Gusseted format
- 100 m per roll
- Eight listed widths from 75 to 400 mm
- Cut-to-length preparation
| Item code | Listed width (mm) | Length / roll (m) | Rolls / carton |
|---|---|---|---|
| LTJD.075-100 | 75 | 100 | 8 |
| LTJD.100-100 | 100 | 100 | 6 |
| LTJD.150-100 | 150 | 100 | 4 |
| LTJD.200-100 | 200 | 100 | 2 |
| LTJD.250-100 | 250 | 100 | 2 |
| LTJD.300-100 | 300 | 100 | 2 |
| LTJD.350-100 | 350 | 100 | 2 |
| LTJD.400-100 | 400 | 100 | 2 |
Steam and EO are listed in the brochure. Gusset depth is not specified; request dimensions for your application.

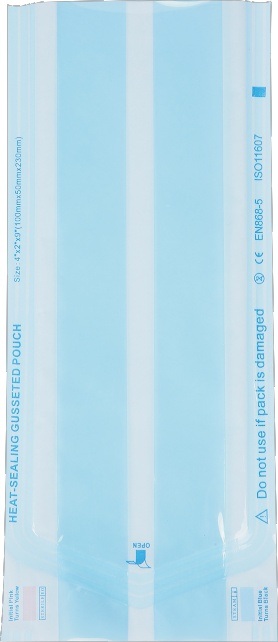

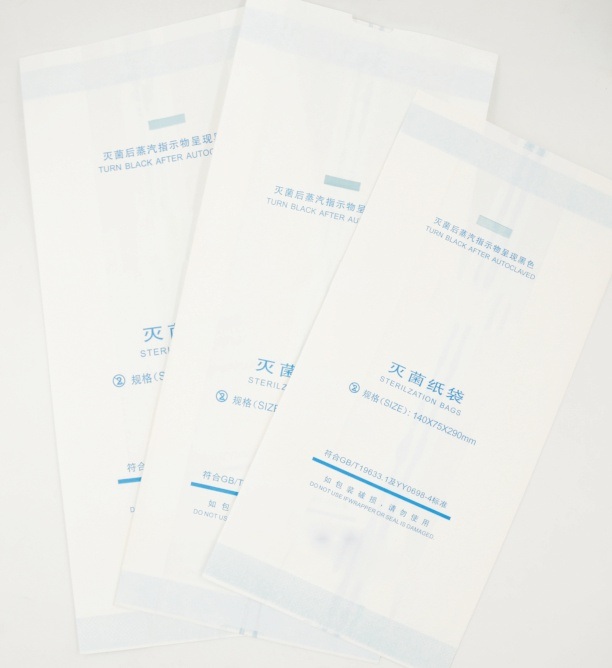

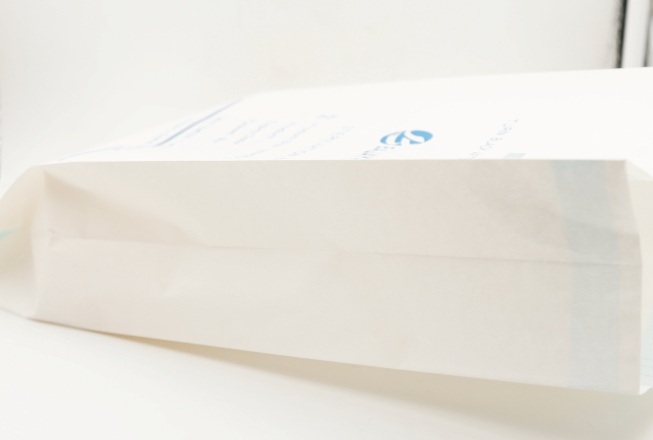

Gusseted Paper & Paper-Film Pouches
- Gusseted pouch format
- Paper or paper-film constructions
- Custom sizes and printing
- Packing specified to order
Paper construction: 60 or 70 gsm medical-grade paper. Paper-film construction: medical-grade paper with CPP/PET composite film. Confirm the ordered material specification.
| Parameter | Specification |
|---|---|
| Format | Gusseted paper pouch or gusseted paper-film pouch |
| Size | Made to order; confirm gusset depth |
| Printed content | Customized on request |
| Packing | Specified to order |
Steam and EO are listed in the brochure. Confirm compatibility for the selected construction and cycle.
Product gallery
Frequently asked questions
Do self-sealing pouches need a heat sealer?
Self-sealing pouches use an adhesive closure. Heat-sealing pouches and reels require a suitable heat-sealing machine and confirmed sealing settings.
Can every format be used for steam, EO and gamma?
Compatibility depends on the material construction and ordered product. Do not assume every format supports every method. Request the current instructions and compatibility information.
Does an indicator color change prove sterility?
A color change provides process-indicator information; it is not proof of sterility.
How long can processed items be stored?
Confirm the validated storage period, packaging integrity and storage conditions for the exact product. A universal storage period is not specified on this page.
Can sizes and printing be customized?
The brochure offers made-to-order sizes and printing for heat-sealing flat pouches and gusseted paper or paper-film pouches. Confirm the requested configuration and quantities.
Request packaging details
Please specify the format, size, material, sterilization process, printing and quantity.
